Embryology cardiovascular system (heart development)

  1. 1. EMBRYOLOGY BY Dr. THAAER MOHAMMED DAHER ALSAAD SPECIALIST IN GENERAL SURGERY M.B.Ch.B. (MBBS) F.I.B.M.S. (PhD) SENIOR LECTURER ISM MSU
  2. 2. Cardiovascular System Heart development
  3. 3. Establishment of the Cardiogenic Field 1/2 • The vascular system appears in the middle of the third week. • Cardiac progenitor cells lie in the ectoderm, immediately lateral to the primitive streak. • Cells destined to form cranial segments of the heart, the outflow tract, migrate first, and cells forming more caudal portions, right ventricle, left ventricle, and sinus venosus, respectively, migrate in sequential order. • The cells proceed toward the cranium and position themselves rostral to the buccopharyngeal membrane and neural folds. • The cells reside in the splanchnic layer of the lateral plate mesoderm, they are induced by the underlying pharyngeal endoderm to form cardiac myoblasts

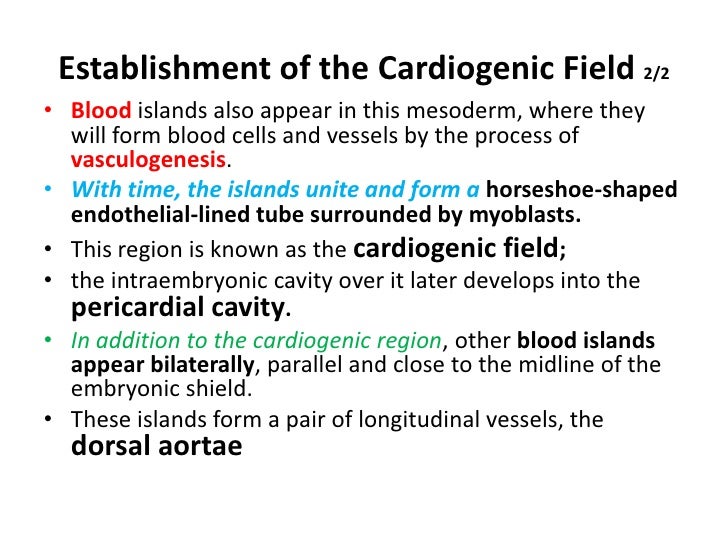

  4. 4. Establishment of the Cardiogenic Field 2/2 • Blood islands also appear in this mesoderm, where they will form blood cells and vessels by the process of vasculogenesis. • With time, the islands unite and form a horseshoe-shaped endothelial-lined tube surrounded by myoblasts. • This region is known as the cardiogenic field; • the intraembryonic cavity over it later develops into the pericardial cavity. • In addition to the cardiogenic region, other blood islands appear bilaterally, parallel and close to the midline of the embryonic shield. • These islands form a pair of longitudinal vessels, the dorsal aortae

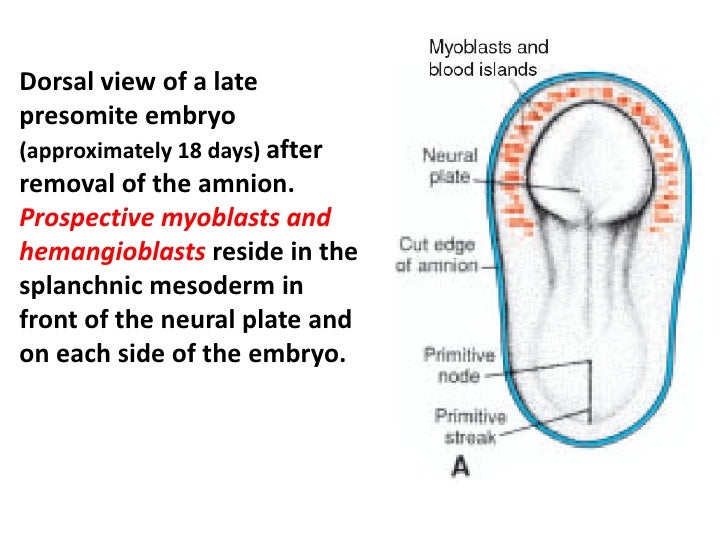

  5. 5. Dorsal view of a late presomite embryo (approximately 18 days) after removal of the amnion. Prospective myoblasts and hemangioblasts reside in the splanchnic mesoderm in front of the neural plate and on each side of the embryo.

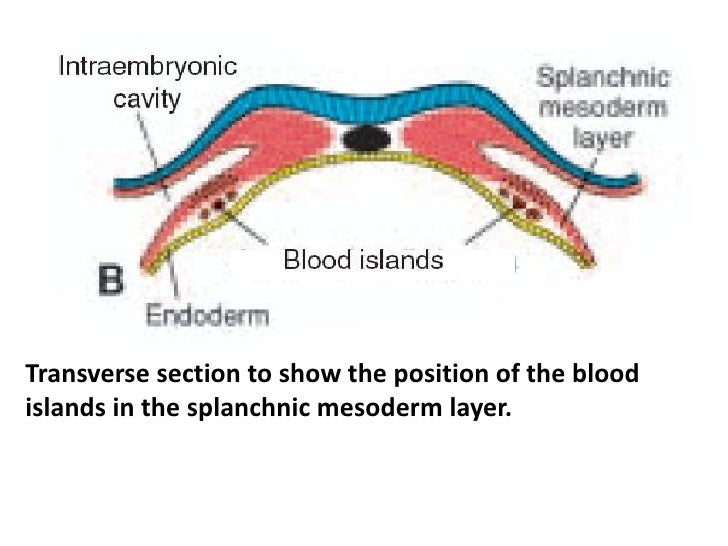

  6. 6. Transverse section to show the position of the blood islands in the splanchnic mesoderm layer.
  7. 7. Cephalocaudal section through a similarstaged embryo showing the position of the pericardial cavity and cardiogenic field.

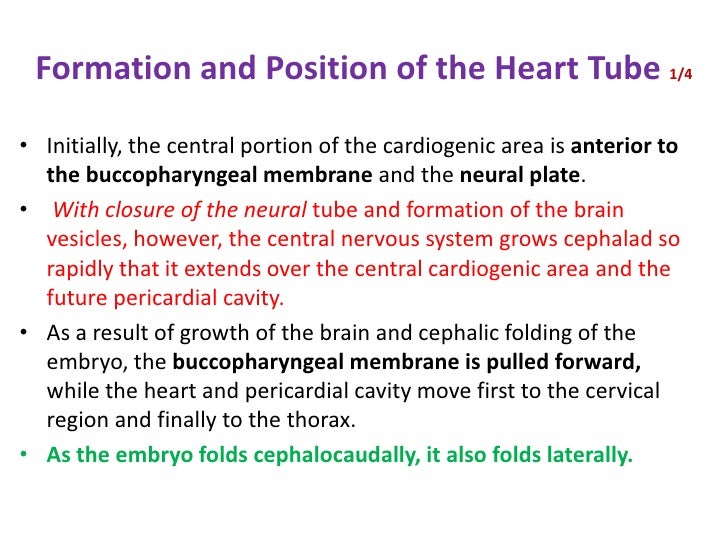

  8. 8. Formation and Position of the Heart Tube 1/4 • Initially, the central portion of the cardiogenic area is anterior to the buccopharyngeal membrane and the neural plate. • With closure of the neural tube and formation of the brain vesicles, however, the central nervous system grows cephalad so rapidly that it extends over the central cardiogenic area and the future pericardial cavity. • As a result of growth of the brain and cephalic folding of the embryo, the buccopharyngeal membrane is pulled forward, while the heart and pericardial cavity move first to the cervical region and finally to the thorax. • As the embryo folds cephalocaudally, it also folds laterally.

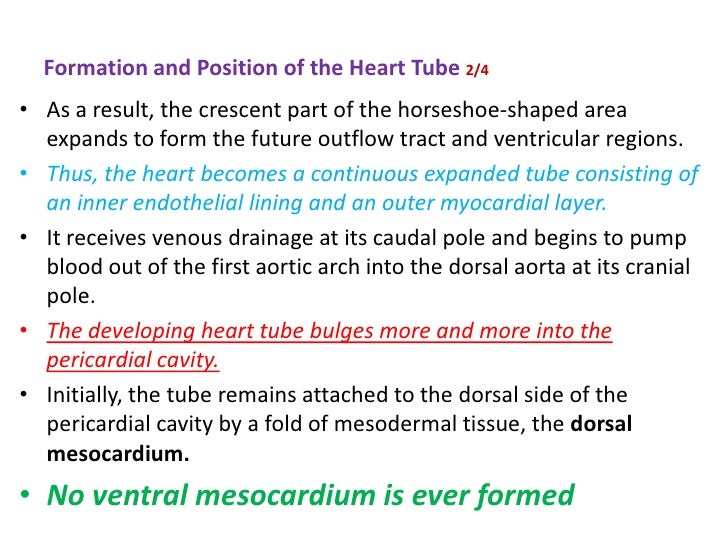

  9. 9. Formation and Position of the Heart Tube 2/4 • As a result, the crescent part of the horseshoe-shaped area expands to form the future outflow tract and ventricular regions. • Thus, the heart becomes a continuous expanded tube consisting of an inner endothelial lining and an outer myocardial layer. • It receives venous drainage at its caudal pole and begins to pump blood out of the first aortic arch into the dorsal aorta at its cranial pole. • The developing heart tube bulges more and more into the pericardial cavity. • Initially, the tube remains attached to the dorsal side of the pericardial cavity by a fold of mesodermal tissue, the dorsal mesocardium. • No ventral mesocardium is ever formed

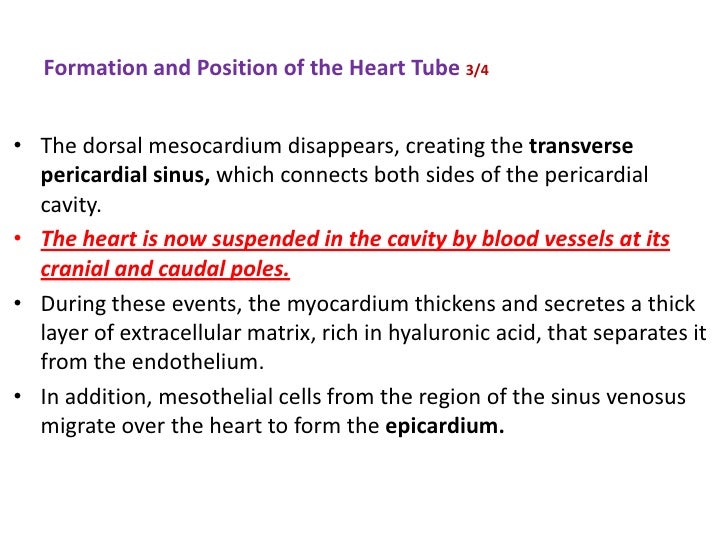

  10. 10. Formation and Position of the Heart Tube 3/4 • The dorsal mesocardium disappears, creating the transverse pericardial sinus, which connects both sides of the pericardial cavity. • The heart is now suspended in the cavity by blood vessels at its cranial and caudal poles. • During these events, the myocardium thickens and secretes a thick layer of extracellular matrix, rich in hyaluronic acid, that separates it from the endothelium. • In addition, mesothelial cells from the region of the sinus venosus migrate over the heart to form the epicardium.

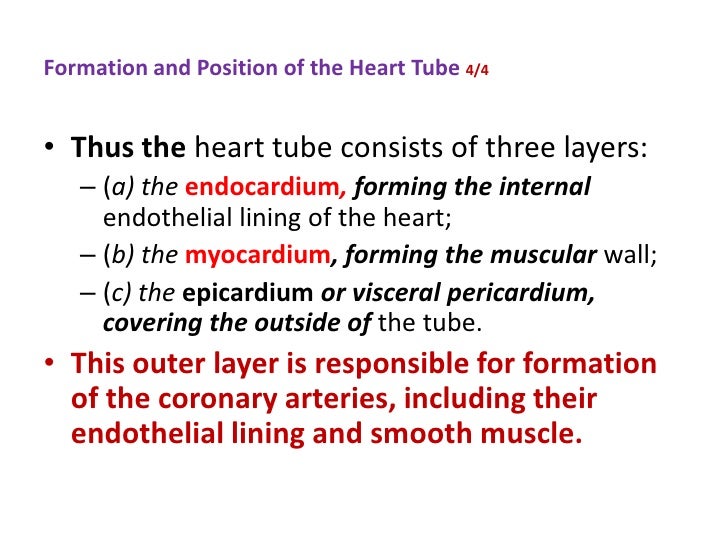

  11. 11. Formation and Position of the Heart Tube 4/4 • Thus the heart tube consists of three layers: – (a) the endocardium, forming the internal endothelial lining of the heart; – (b) the myocardium, forming the muscular wall; – (c) the epicardium or visceral pericardium, covering the outside of the tube. • This outer layer is responsible for formation of the coronary arteries, including their endothelial lining and smooth muscle.
  12. 12. The head folds (HF) are expanding and curving over the heart (H) and pericardial cavity (asterisk). The intestinal opening (arrow) of the gut into the primitive pharynx and the endoderm (E ) of the open region of the gut tube are shown.
  13. 13. Figures showing effects of the rapid growth of the brain on positioning of the heart.

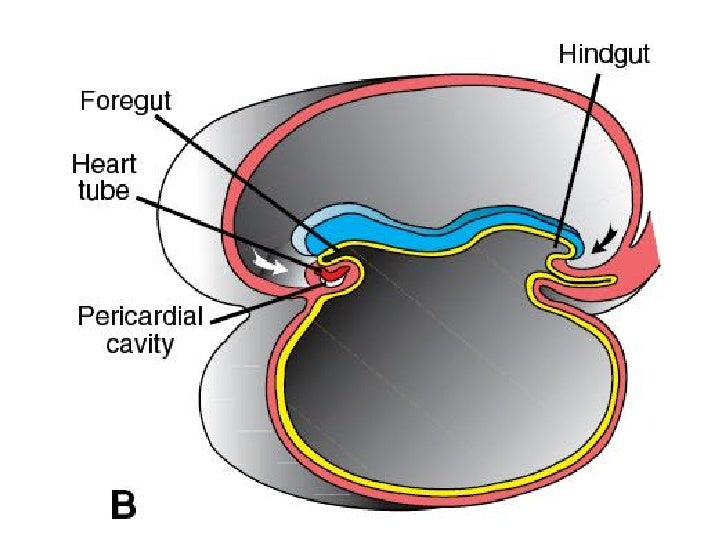

  14. 14. 20 days

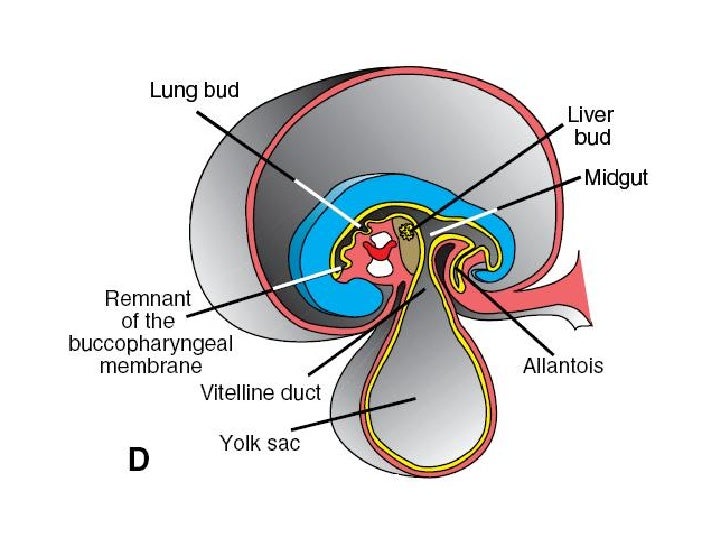

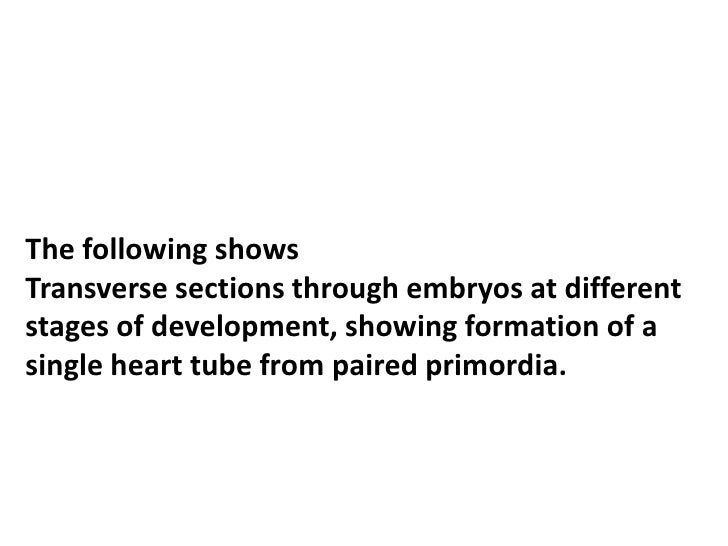

  15. 15. The following shows Transverse sections through embryos at different stages of development, showing formation of a single heart tube from paired primordia.

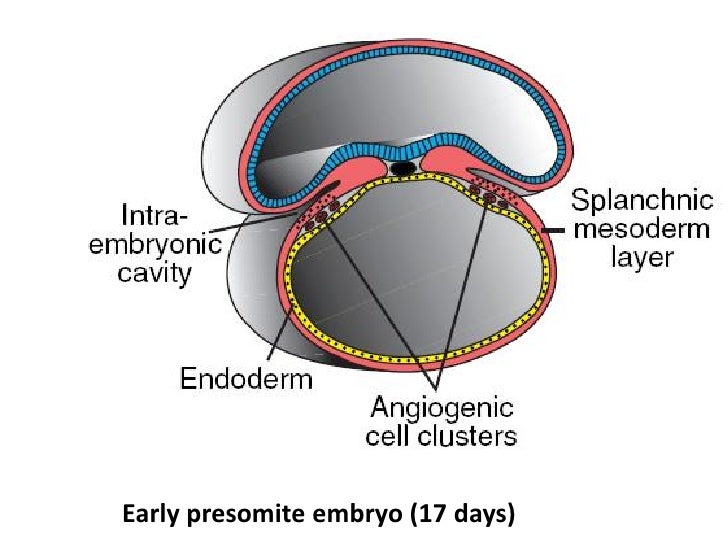

  16. 16. Early presomite embryo (17 days)

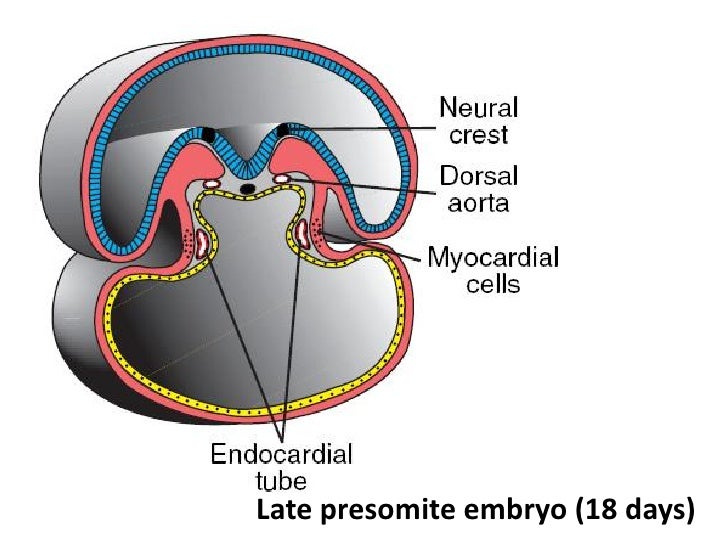

  17. 17. Late presomite embryo (18 days)

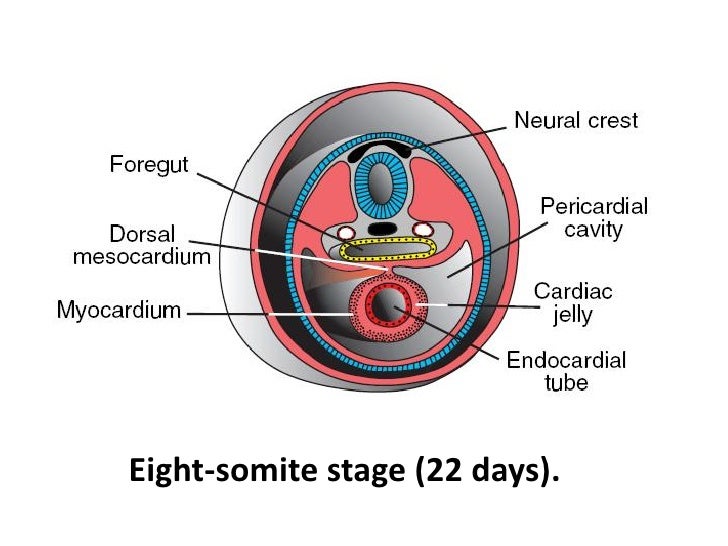

  18. 18. Eight-somite stage (22 days).

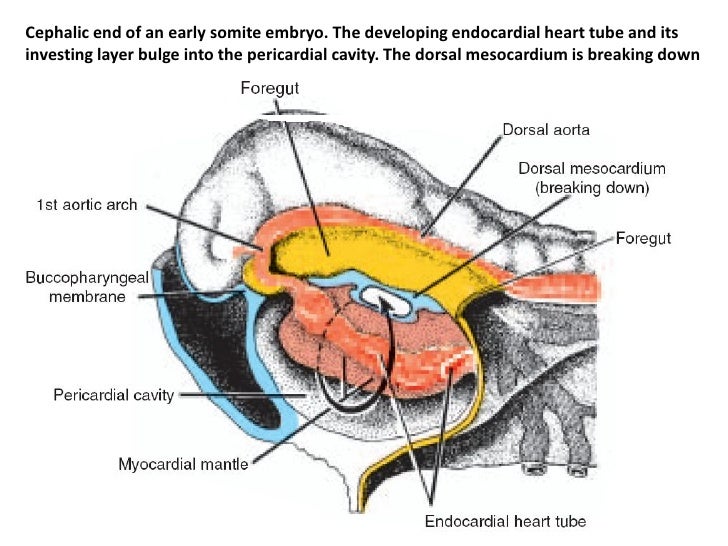

  19. 19. Cephalic end of an early somite embryo. The developing endocardial heart tube and its investing layer bulge into the pericardial cavity. The dorsal mesocardium is breaking down

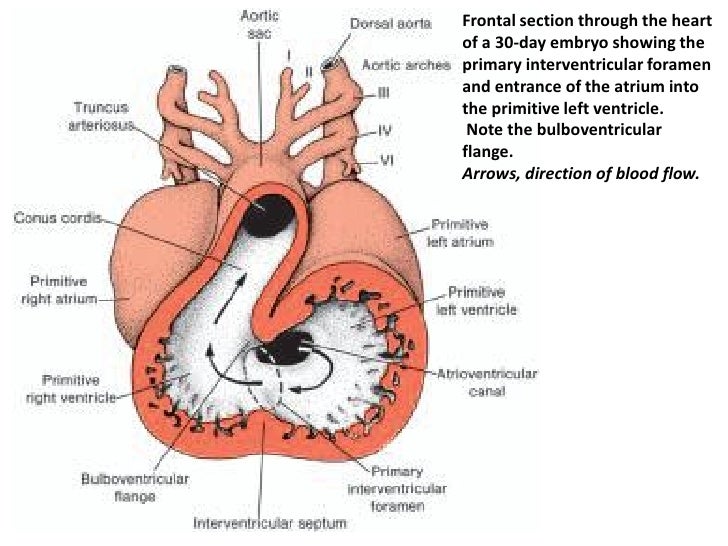

  20. 20. Frontal section through the heart of a 30-day embryo showing the primary interventricular foramen and entrance of the atrium into the primitive left ventricle. Note the bulboventricular flange. Arrows, direction of blood flow.

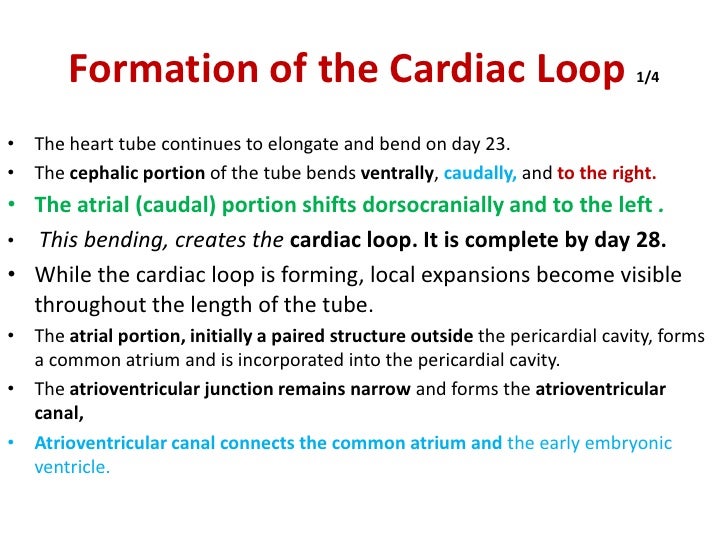

  21. 21. Formation of the Cardiac Loop 1/4 • The heart tube continues to elongate and bend on day 23. • The cephalic portion of the tube bends ventrally, caudally, and to the right. • The atrial (caudal) portion shifts dorsocranially and to the left . • This bending, creates the cardiac loop. It is complete by day 28. • While the cardiac loop is forming, local expansions become visible throughout the length of the tube. • The atrial portion, initially a paired structure outside the pericardial cavity, forms a common atrium and is incorporated into the pericardial cavity. • The atrioventricular junction remains narrow and forms the atrioventricular canal, • Atrioventricular canal connects the common atrium and the early embryonic ventricle.

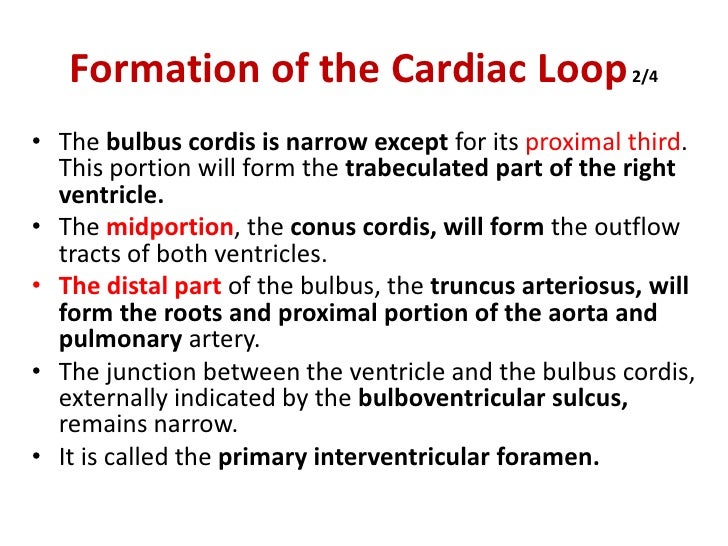

  22. 22. Formation of the Cardiac Loop 2/4 • The bulbus cordis is narrow except for its proximal third. This portion will form the trabeculated part of the right ventricle. • The midportion, the conus cordis, will form the outflow tracts of both ventricles. • The distal part of the bulbus, the truncus arteriosus, will form the roots and proximal portion of the aorta and pulmonary artery. • The junction between the ventricle and the bulbus cordis, externally indicated by the bulboventricular sulcus, remains narrow. • It is called the primary interventricular foramen.

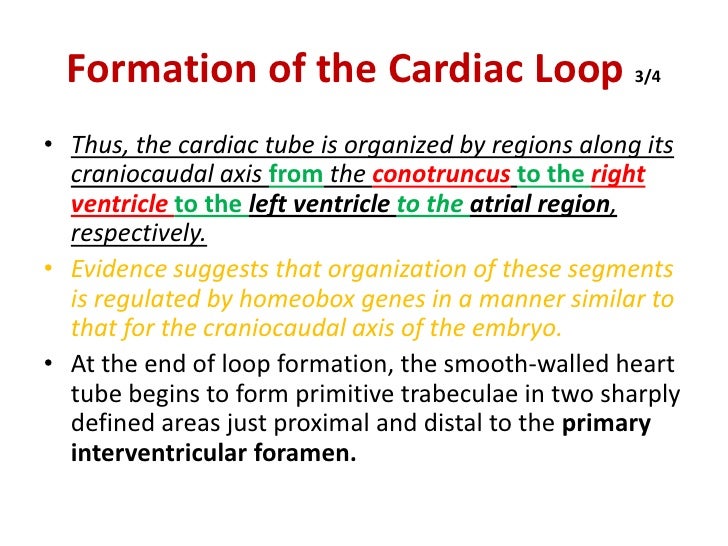

  23. 23. Formation of the Cardiac Loop 3/4 • Thus, the cardiac tube is organized by regions along its craniocaudal axis from the conotruncus to the right ventricle to the left ventricle to the atrial region, respectively. • Evidence suggests that organization of these segments is regulated by homeobox genes in a manner similar to that for the craniocaudal axis of the embryo. • At the end of loop formation, the smooth-walled heart tube begins to form primitive trabeculae in two sharply defined areas just proximal and distal to the primary interventricular foramen.

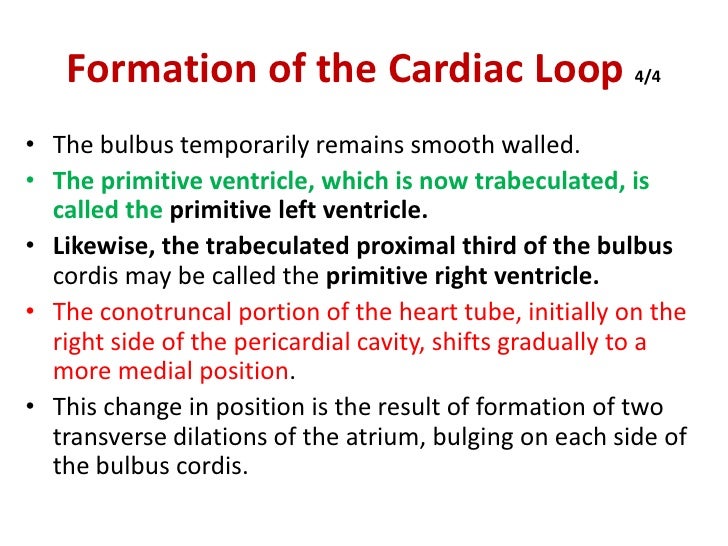

  24. 24. Formation of the Cardiac Loop 4/4 • The bulbus temporarily remains smooth walled. • The primitive ventricle, which is now trabeculated, is called the primitive left ventricle. • Likewise, the trabeculated proximal third of the bulbus cordis may be called the primitive right ventricle. • The conotruncal portion of the heart tube, initially on the right side of the pericardial cavity, shifts gradually to a more medial position. • This change in position is the result of formation of two transverse dilations of the atrium, bulging on each side of the bulbus cordis.
  25. 25. Scanning electron micrograph of a mouse embryo equivalent to 19 days in the human, showing coalescence of the blood islands by vasculogenesis into a horseshoeshaped heart tube (arrows) lying in the primitive pericardial cavity under the cranial neural folds (asterisks).

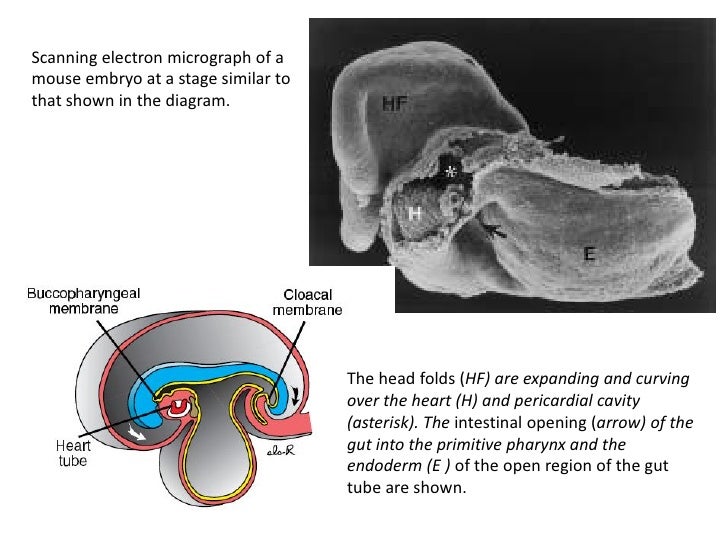

  26. 26. Scanning electron micrograph of a mouse embryo at a stage similar to that shown in the diagram. The head folds (HF) are expanding and curving over the heart (H) and pericardial cavity (asterisk). The intestinal opening (arrow) of the gut into the primitive pharynx and the endoderm (E ) of the open region of the gut tube are shown.
  27. 27. 11.4 The heart tube (arrows) is horseshoe shaped in the pericardial cavity beneath the neural folds (stars)
  28. 28. The crescent portion of the horseshoe expands to form the ventricular and outflow tract regions, while lateral folding brings the caudal (venous) poles of the horseshoe together
  29. 29. The caudal regions begin to fuse
  30. 30. Fusion of the caudal regions is complete, leaving the caudal poles embedded in the septum transversum (arrowheads). Cardiac looping has also been initiated. Asterisk, pericardial cavity; large arrow, anterior intestinal portal.
  31. 31. A, primitive atrium; arrow, Septum transversum; S, sinus venosus; V, ventricle.

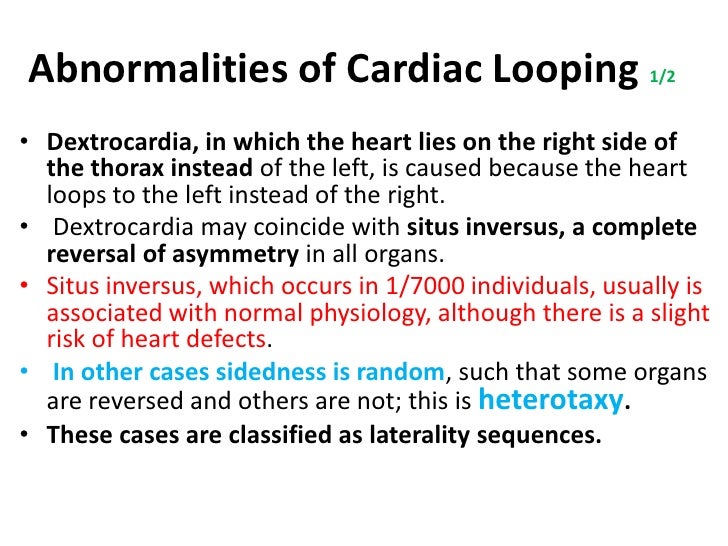

  32. 32. Abnormalities of Cardiac Looping 1/2 • Dextrocardia, in which the heart lies on the right side of the thorax instead of the left, is caused because the heart loops to the left instead of the right. • Dextrocardia may coincide with situs inversus, a complete reversal of asymmetry in all organs. • Situs inversus, which occurs in 1/7000 individuals, usually is associated with normal physiology, although there is a slight risk of heart defects. • In other cases sidedness is random, such that some organs are reversed and others are not; this is heterotaxy. • These cases are classified as laterality sequences.

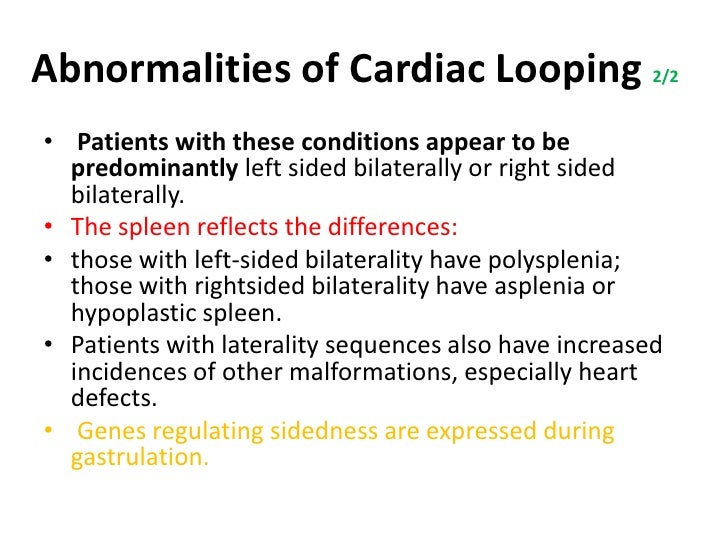

  33. 33. Abnormalities of Cardiac Looping 2/2 • Patients with these conditions appear to be predominantly left sided bilaterally or right sided bilaterally. • The spleen reflects the differences: • those with left-sided bilaterality have polysplenia; those with rightsided bilaterality have asplenia or hypoplastic spleen. • Patients with laterality sequences also have increased incidences of other malformations, especially heart defects. • Genes regulating sidedness are expressed during gastrulation.
  34. 34. Molecular Regulation of Cardiac Development skip • Signals from anterior (cranial) endoderm induce a heart-forming region in overlying splanchnic mesoderm by turning on the transcription factor NKX2.5. • The signals require secretion of bone morphogenetic proteins (BMPs) 2 and 4 and inhibitors (crescent) of WNT genes in the endoderm and lateral plate mesoderm. • This combination is responsible for inducing expression of NKX2.5 that specifies the cardiogenic field and, later, plays a role in septation and in development of the conduction system. • NKX2.5 contains a homeodomain and is a homologue of the gene tinman, which regulates heart development in Drosophila. • TBX5 is another transcription factor that contains a DNA-binding motif known as the T-box. • Expressed later than NKX2.5, it plays a role in septation

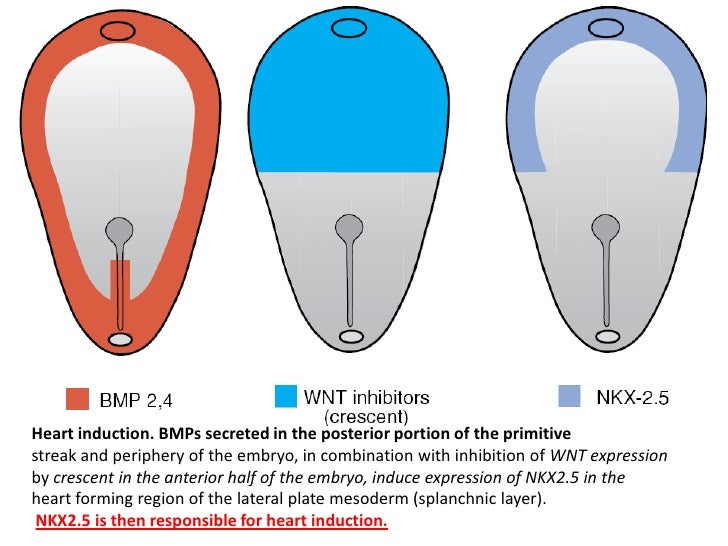

  35. 35. Heart induction. BMPs secreted in the posterior portion of the primitive streak and periphery of the embryo, in combination with inhibition of WNT expression by crescent in the anterior half of the embryo, induce expression of NKX2.5 in the heart forming region of the lateral plate mesoderm (splanchnic layer). NKX2.5 is then responsible for heart induction.
  36. 36. Development of the Sinus Venosus 1/3 • In the middle of the fourth week, the sinus venosus receives venous blood from the right and left sinus horns.  Each horn receives blood from three important veins: – (a) the vitelline or omphalomesenteric vein, – (b) the umbilical vein, – (c) the common cardinal vein.  At first communication between the sinus and the atrium is wide. Soon, however, the entrance of the sinus shifts to the right. This shift is caused primarily by left-to-right shunts of blood, which occur in the venous system during the fourth and fifth weeks of development.
  37. 37. Broken line, the entrance of the sinus venosus into atrial cavity

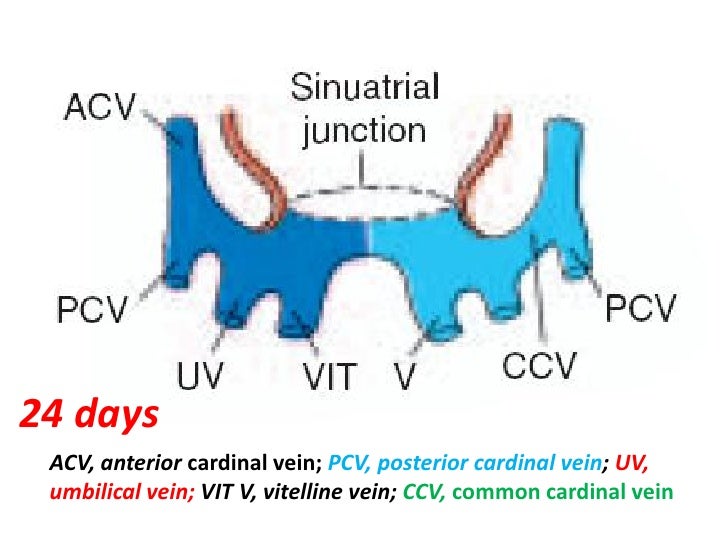

  38. 38. 24 days ACV, anterior cardinal vein; PCV, posterior cardinal vein; UV, umbilical vein; VIT V, vitelline vein; CCV, common cardinal vein

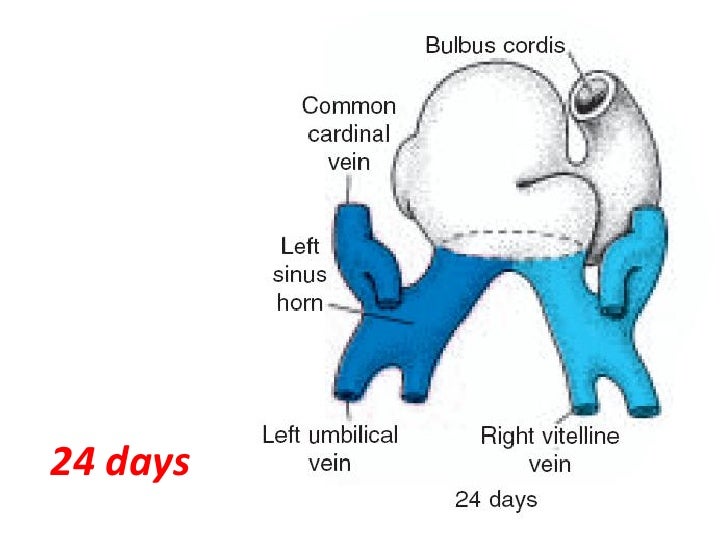

  39. 39. 24 days

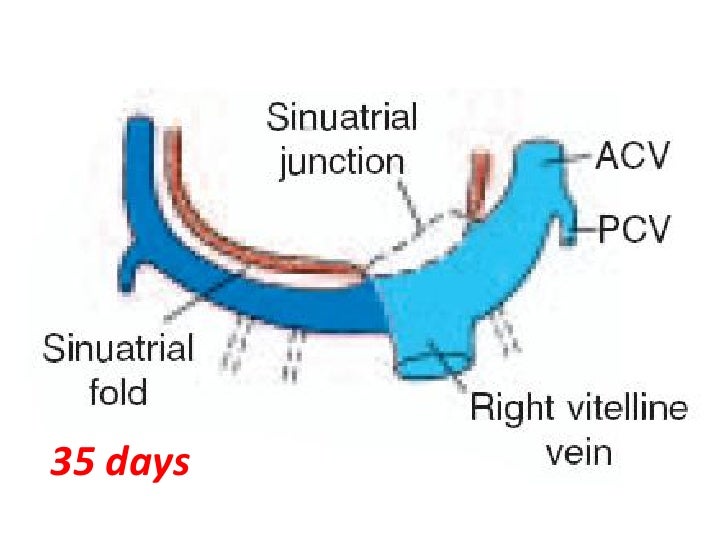

  40. 40. 35 days
  41. 41. 35 days

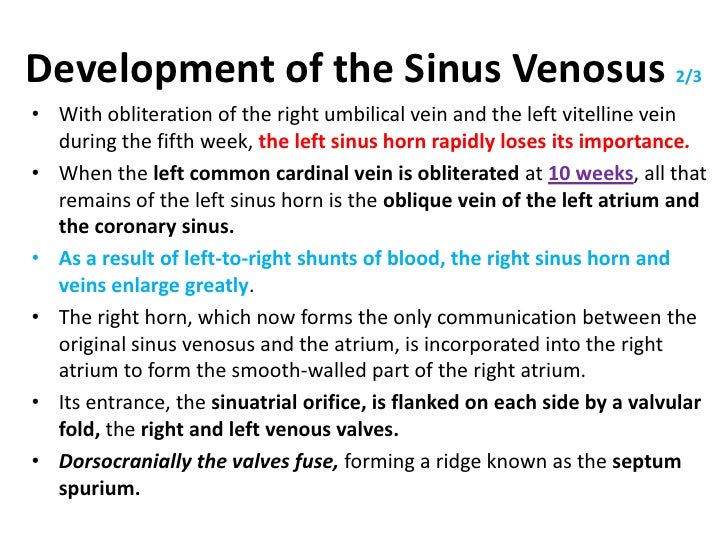

  42. 42. Development of the Sinus Venosus 2/3 • With obliteration of the right umbilical vein and the left vitelline vein during the fifth week, the left sinus horn rapidly loses its importance. • When the left common cardinal vein is obliterated at 10 weeks, all that remains of the left sinus horn is the oblique vein of the left atrium and the coronary sinus. • As a result of left-to-right shunts of blood, the right sinus horn and veins enlarge greatly. • The right horn, which now forms the only communication between the original sinus venosus and the atrium, is incorporated into the right atrium to form the smooth-walled part of the right atrium. • Its entrance, the sinuatrial orifice, is flanked on each side by a valvular fold, the right and left venous valves. • Dorsocranially the valves fuse, forming a ridge known as the septum spurium.
  43. 43. 5 weeks fetal stage

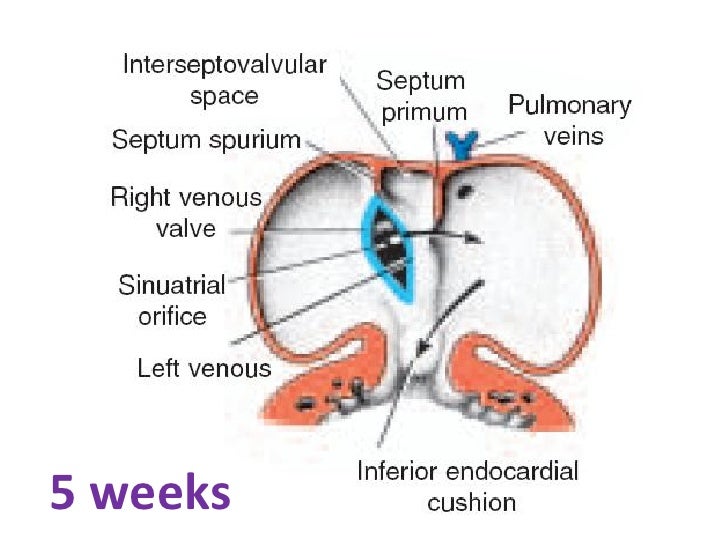

  44. 44. 5 weeks

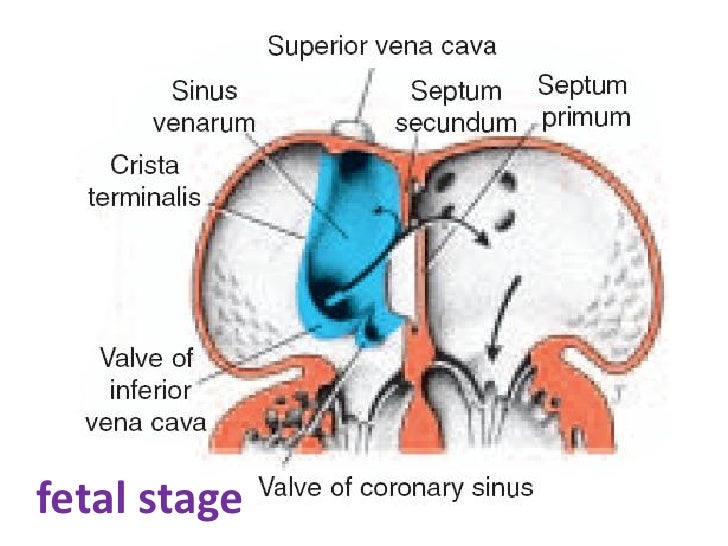

  45. 45. fetal stage

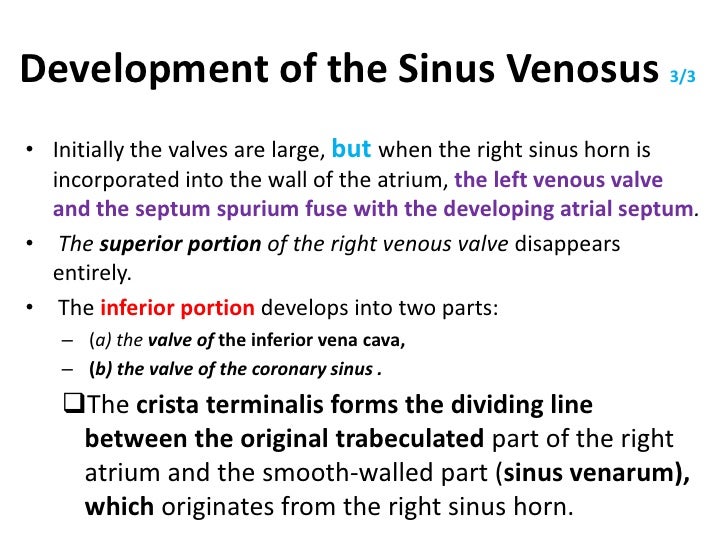

  46. 46. Development of the Sinus Venosus 3/3 • Initially the valves are large, but when the right sinus horn is incorporated into the wall of the atrium, the left venous valve and the septum spurium fuse with the developing atrial septum. • The superior portion of the right venous valve disappears entirely. • The inferior portion develops into two parts: – (a) the valve of the inferior vena cava, – (b) the valve of the coronary sinus . The crista terminalis forms the dividing line between the original trabeculated part of the right atrium and the smooth-walled part (sinus venarum), which originates from the right sinus horn.

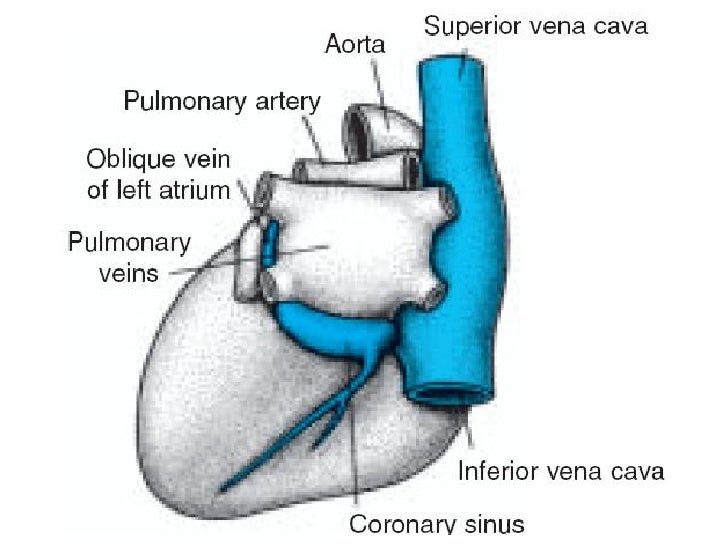

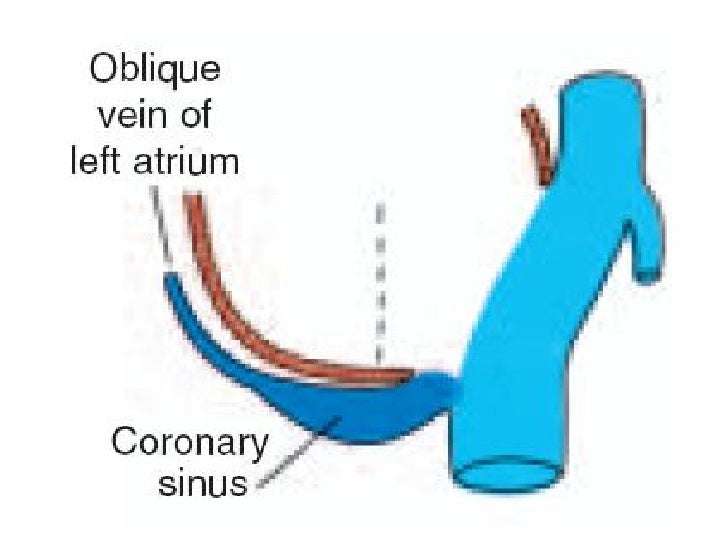

  47. 47. Final stage in development of the sinus venosus and great veins
  48. 48. High magnification of the interatrial septum (arrows) of a Scanning electron micrograph of a similar- mouse embryo. The foramen staged mouse heart showing initial formation ovale is not visible. of the septum primum; septum spurium is not visible. Note the atrioventricular canal (arrow

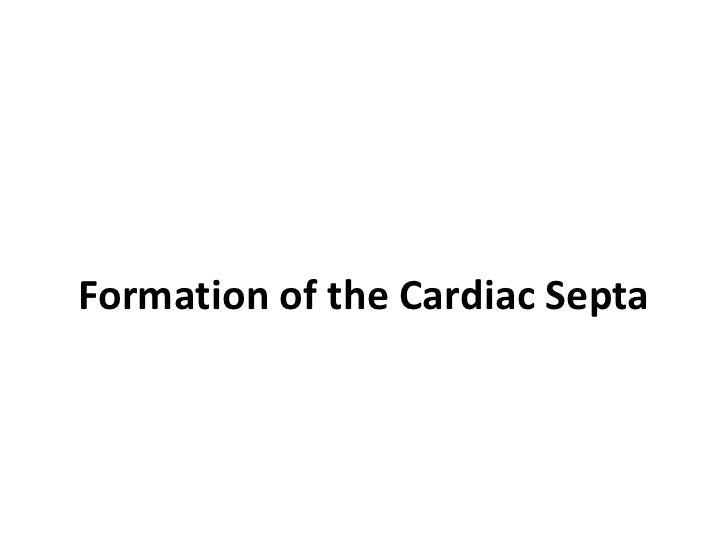

  49. 49. Formation of the Cardiac Septa

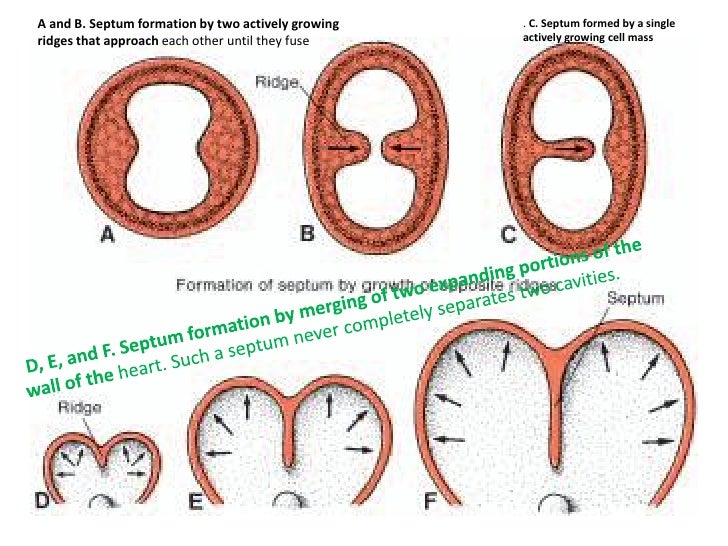

  50. 50. A and B. Septum formation by two actively growing . C. Septum formed by a single ridges that approach each other until they fuse actively growing cell mass

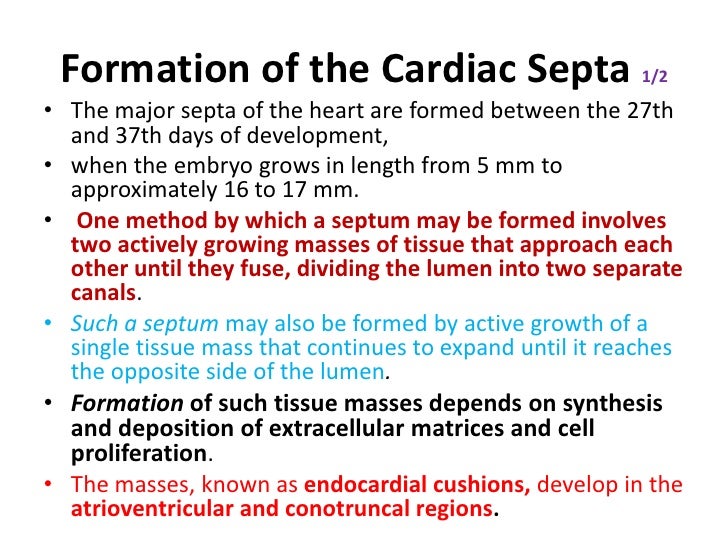

  51. 51. Formation of the Cardiac Septa 1/2 • The major septa of the heart are formed between the 27th and 37th days of development, • when the embryo grows in length from 5 mm to approximately 16 to 17 mm. • One method by which a septum may be formed involves two actively growing masses of tissue that approach each other until they fuse, dividing the lumen into two separate canals. • Such a septum may also be formed by active growth of a single tissue mass that continues to expand until it reaches the opposite side of the lumen. • Formation of such tissue masses depends on synthesis and deposition of extracellular matrices and cell proliferation. • The masses, known as endocardial cushions, develop in the atrioventricular and conotruncal regions.

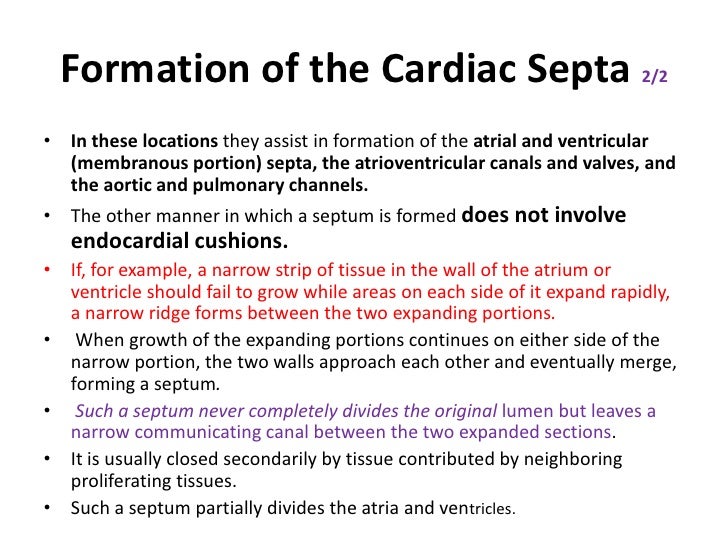

  52. 52. Formation of the Cardiac Septa 2/2 • In these locations they assist in formation of the atrial and ventricular (membranous portion) septa, the atrioventricular canals and valves, and the aortic and pulmonary channels. • The other manner in which a septum is formed does not involve endocardial cushions. • If, for example, a narrow strip of tissue in the wall of the atrium or ventricle should fail to grow while areas on each side of it expand rapidly, a narrow ridge forms between the two expanding portions. • When growth of the expanding portions continues on either side of the narrow portion, the two walls approach each other and eventually merge, forming a septum. • Such a septum never completely divides the original lumen but leaves a narrow communicating canal between the two expanded sections. • It is usually closed secondarily by tissue contributed by neighboring proliferating tissues. • Such a septum partially divides the atria and ventricles.

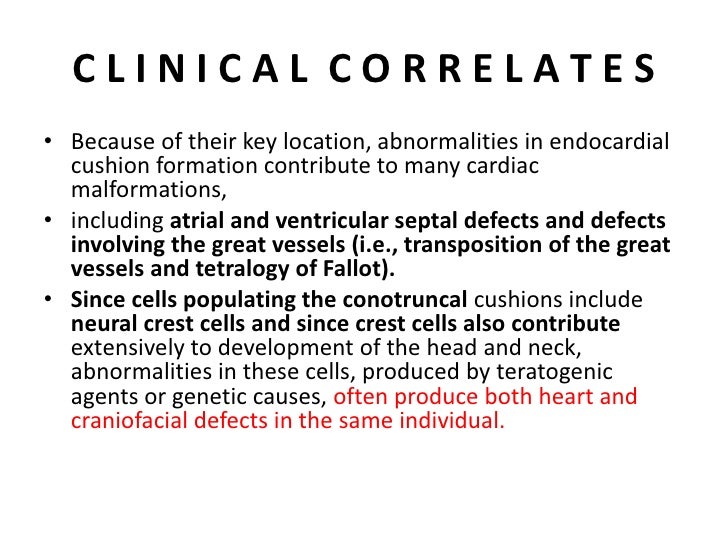

  53. 53. CLINICAL CORRELATES • Because of their key location, abnormalities in endocardial cushion formation contribute to many cardiac malformations, • including atrial and ventricular septal defects and defects involving the great vessels (i.e., transposition of the great vessels and tetralogy of Fallot). • Since cells populating the conotruncal cushions include neural crest cells and since crest cells also contribute extensively to development of the head and neck, abnormalities in these cells, produced by teratogenic agents or genetic causes, often produce both heart and craniofacial defects in the same individual.

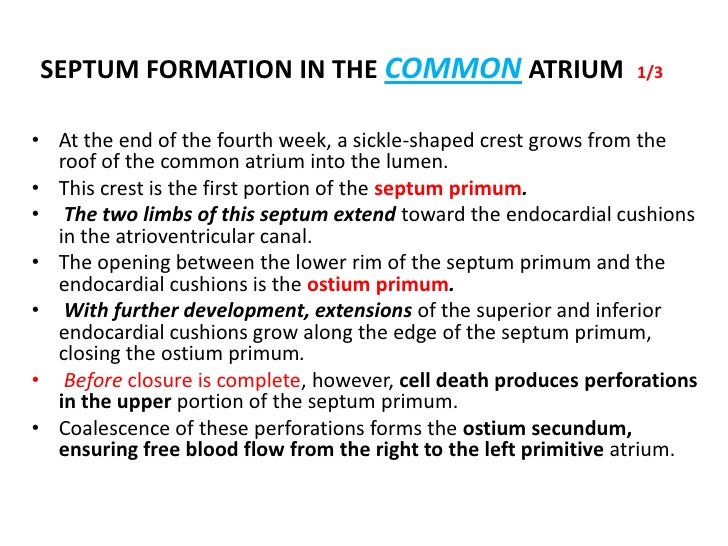

  54. 54. SEPTUM FORMATION IN THE COMMON ATRIUM 1/3 • At the end of the fourth week, a sickle-shaped crest grows from the roof of the common atrium into the lumen. • This crest is the first portion of the septum primum. • The two limbs of this septum extend toward the endocardial cushions in the atrioventricular canal. • The opening between the lower rim of the septum primum and the endocardial cushions is the ostium primum. • With further development, extensions of the superior and inferior endocardial cushions grow along the edge of the septum primum, closing the ostium primum. • Before closure is complete, however, cell death produces perforations in the upper portion of the septum primum. • Coalescence of these perforations forms the ostium secundum, ensuring free blood flow from the right to the left primitive atrium.

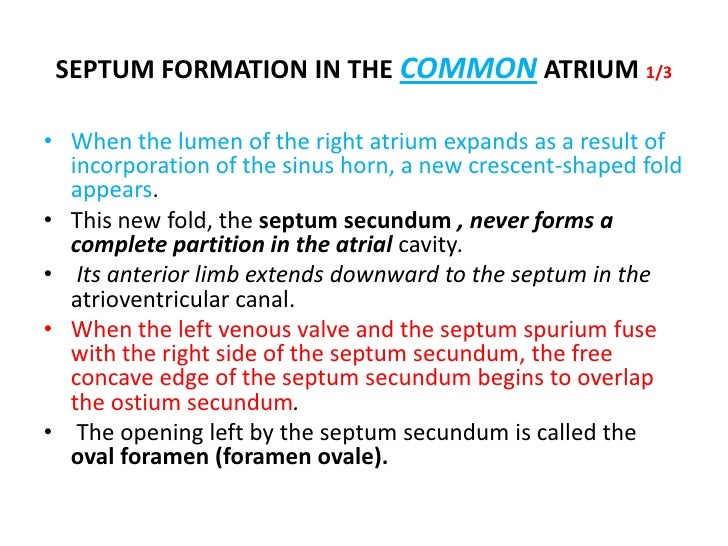

  55. 55. SEPTUM FORMATION IN THE COMMON ATRIUM 1/3 • When the lumen of the right atrium expands as a result of incorporation of the sinus horn, a new crescent-shaped fold appears. • This new fold, the septum secundum , never forms a complete partition in the atrial cavity. • Its anterior limb extends downward to the septum in the atrioventricular canal. • When the left venous valve and the septum spurium fuse with the right side of the septum secundum, the free concave edge of the septum secundum begins to overlap the ostium secundum. • The opening left by the septum secundum is called the oval foramen (foramen ovale).

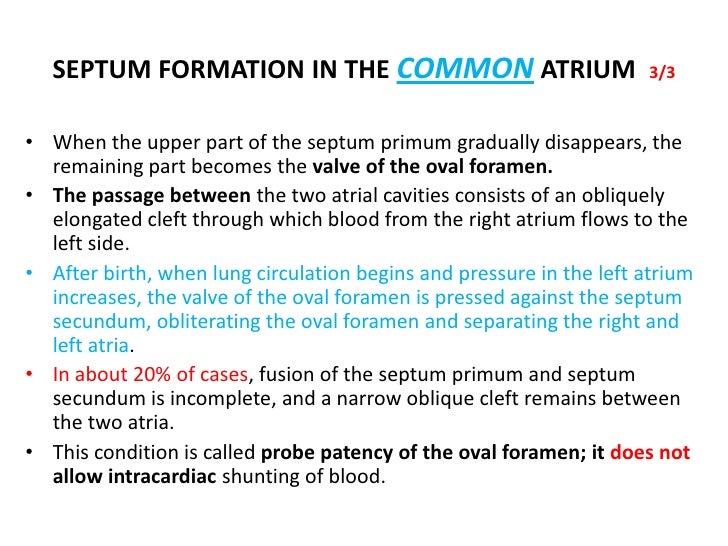

  56. 56. SEPTUM FORMATION IN THE COMMON ATRIUM 3/3 • When the upper part of the septum primum gradually disappears, the remaining part becomes the valve of the oval foramen. • The passage between the two atrial cavities consists of an obliquely elongated cleft through which blood from the right atrium flows to the left side. • After birth, when lung circulation begins and pressure in the left atrium increases, the valve of the oval foramen is pressed against the septum secundum, obliterating the oval foramen and separating the right and left atria. • In about 20% of cases, fusion of the septum primum and septum secundum is incomplete, and a narrow oblique cleft remains between the two atria. • This condition is called probe patency of the oval foramen; it does not allow intracardiac shunting of blood.

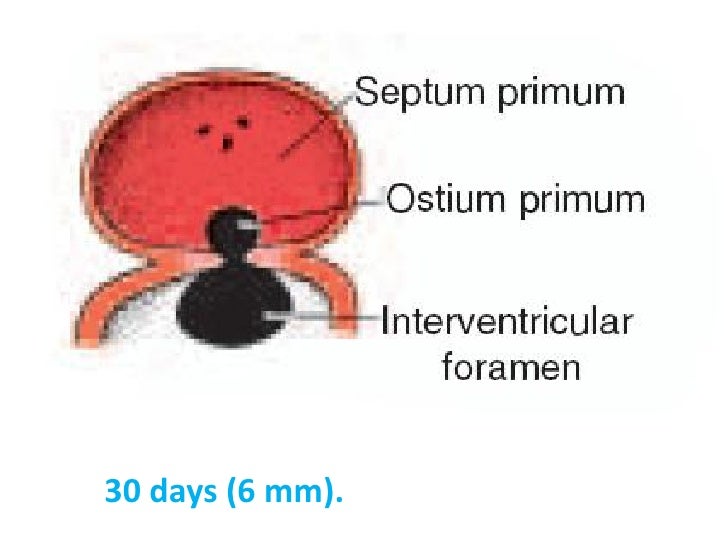

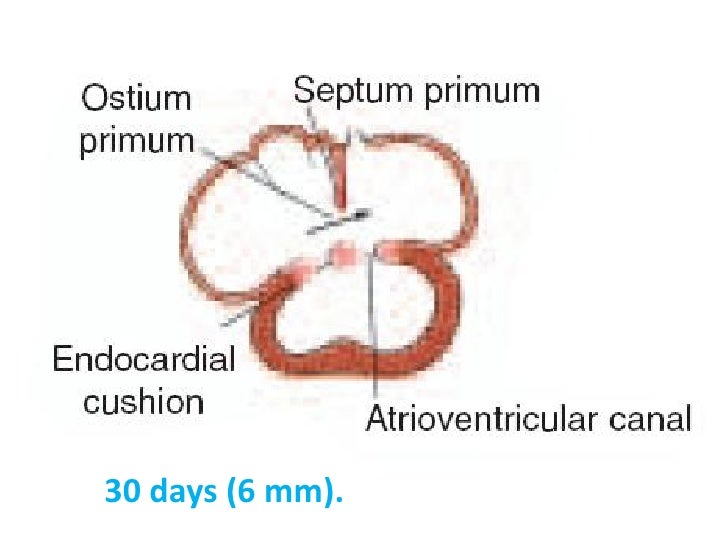

  57. 57. 30 days (6 mm).
  58. 58. 30 days (6 mm).

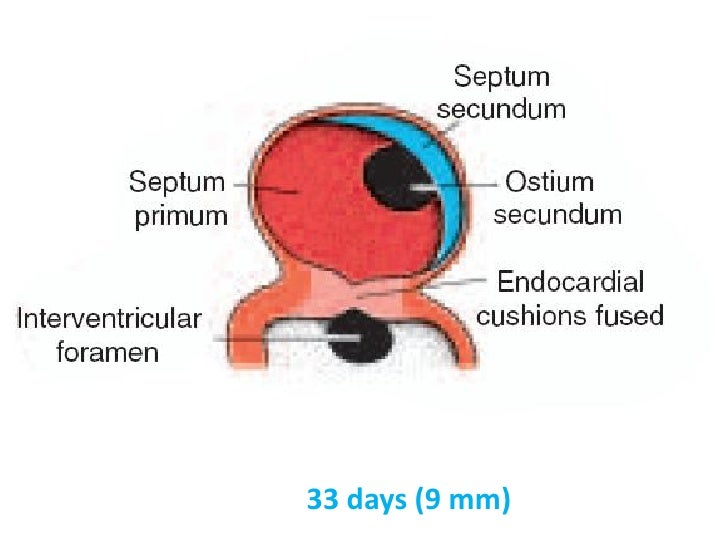

  59. 59. 33 days (9 mm)
  60. 60. 33 days (9 mm)

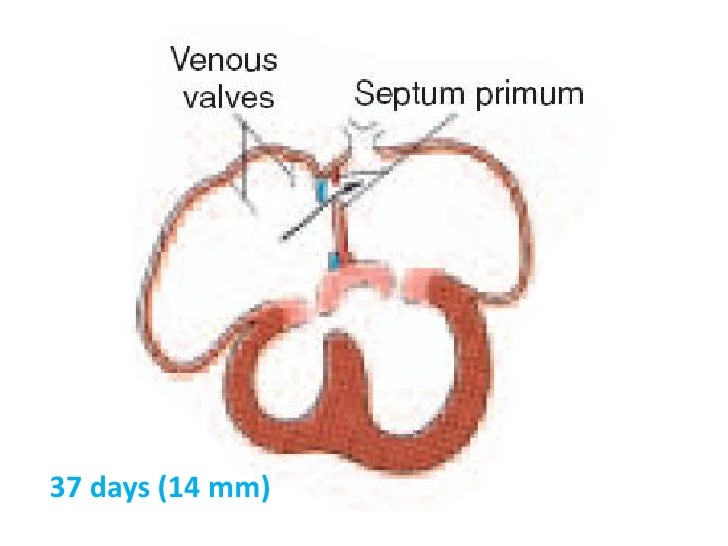

  61. 61. 37 days (14 mm)
  62. 62. Newborn

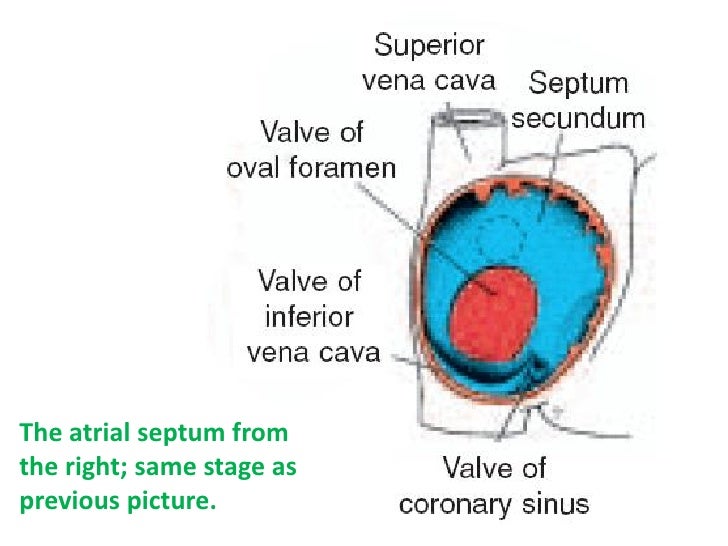

  63. 63. The atrial septum from the right; same stage as previous picture.

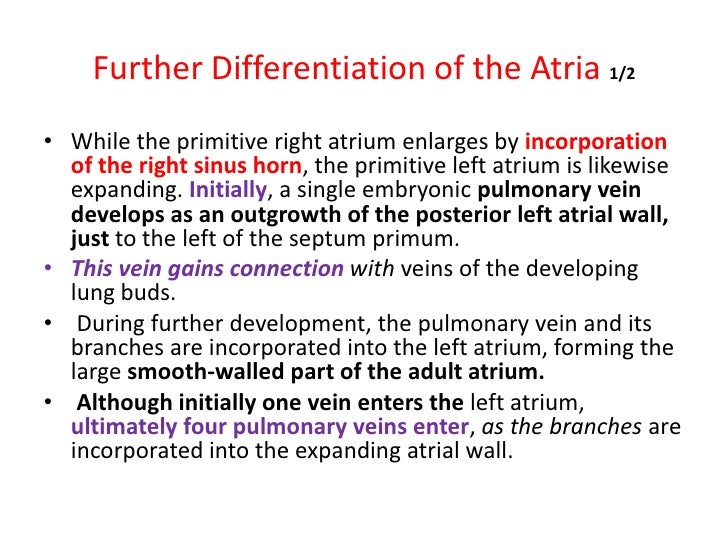

  64. 64. Further Differentiation of the Atria 1/2 • While the primitive right atrium enlarges by incorporation of the right sinus horn, the primitive left atrium is likewise expanding. Initially, a single embryonic pulmonary vein develops as an outgrowth of the posterior left atrial wall, just to the left of the septum primum. • This vein gains connection with veins of the developing lung buds. • During further development, the pulmonary vein and its branches are incorporated into the left atrium, forming the large smooth-walled part of the adult atrium. • Although initially one vein enters the left atrium, ultimately four pulmonary veins enter, as the branches are incorporated into the expanding atrial wall.
  65. 65. Further Differentiation of the Atria 2/2 • In the fully developed heart, the original embryonic left atrium is represented by little more than the trabeculated atrial appendage, while the smooth-walled part originates from the pulmonary veins. • On the right side the original embryonic right atrium becomes the trabeculated right atrial appendage containing the pectinate muscles, and the smooth-walled sinus venarum originates from the right horn of the sinus venosus.

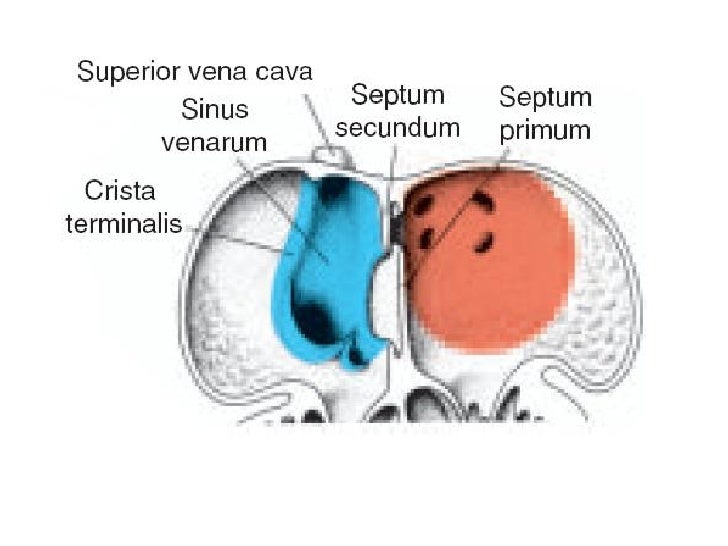

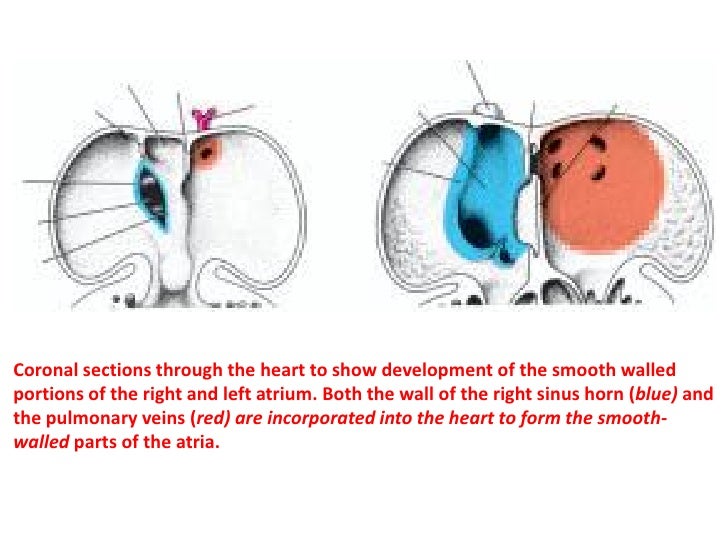

  66. 66. Coronal sections through the heart to show development of the smooth walled portions of the right and left atrium. Both the wall of the right sinus horn (blue) and the pulmonary veins (red) are incorporated into the heart to form the smooth- walled parts of the atria.

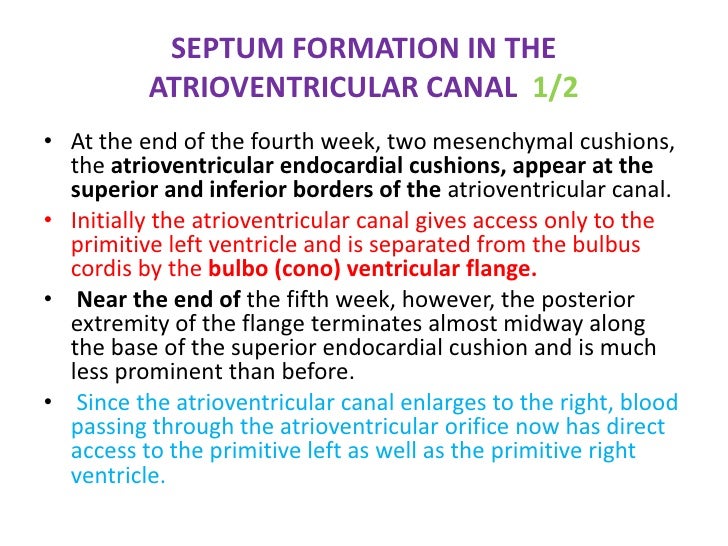

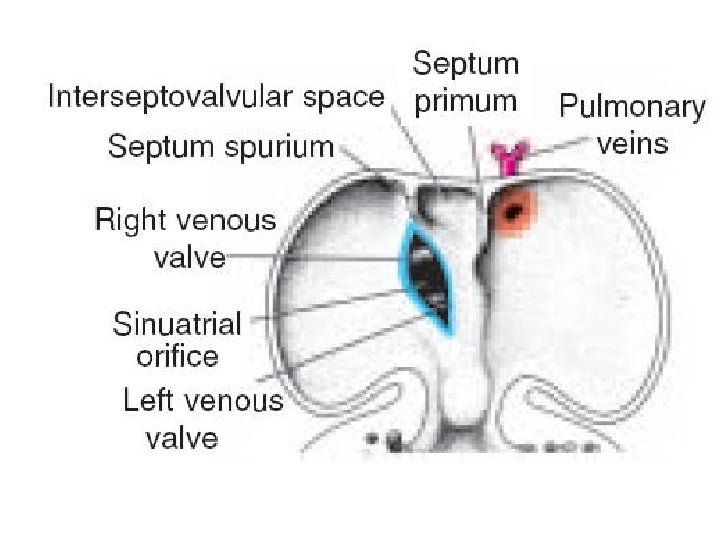

  67. 67. SEPTUM FORMATION IN THE ATRIOVENTRICULAR CANAL 1/2 • At the end of the fourth week, two mesenchymal cushions, the atrioventricular endocardial cushions, appear at the superior and inferior borders of the atrioventricular canal. • Initially the atrioventricular canal gives access only to the primitive left ventricle and is separated from the bulbus cordis by the bulbo (cono) ventricular flange. • Near the end of the fifth week, however, the posterior extremity of the flange terminates almost midway along the base of the superior endocardial cushion and is much less prominent than before. • Since the atrioventricular canal enlarges to the right, blood passing through the atrioventricular orifice now has direct access to the primitive left as well as the primitive right ventricle.

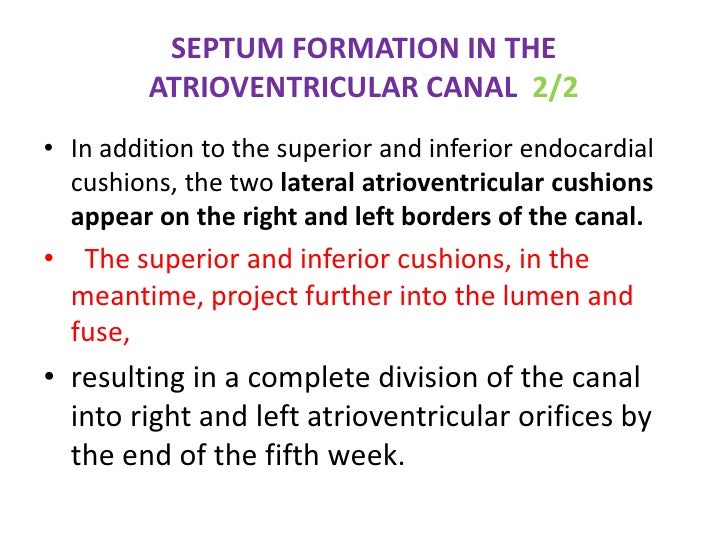

  68. 68. SEPTUM FORMATION IN THE ATRIOVENTRICULAR CANAL 2/2 • In addition to the superior and inferior endocardial cushions, the two lateral atrioventricular cushions appear on the right and left borders of the canal. • The superior and inferior cushions, in the meantime, project further into the lumen and fuse, • resulting in a complete division of the canal into right and left atrioventricular orifices by the end of the fifth week.

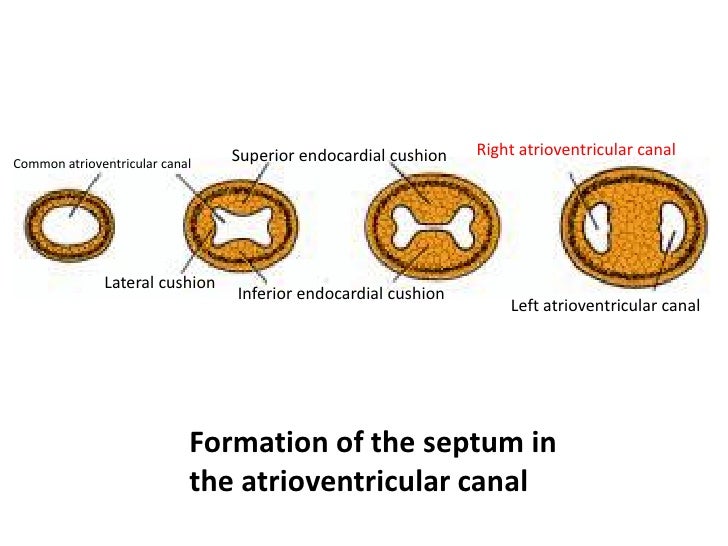

  69. 69. Superior endocardial cushion Right atrioventricular canal Common atrioventricular canal Lateral cushion Inferior endocardial cushion Left atrioventricular canal Formation of the septum in the atrioventricular canal

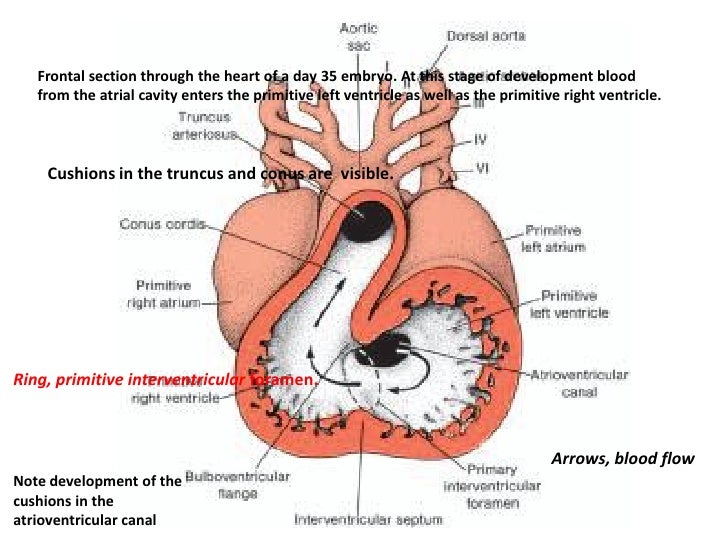

  70. 70. Frontal section through the heart of a day 35 embryo. At this stage of development blood from the atrial cavity enters the primitive left ventricle as well as the primitive right ventricle. Cushions in the truncus and conus are visible. Ring, primitive interventricular foramen. Arrows, blood flow Note development of the cushions in the atrioventricular canal

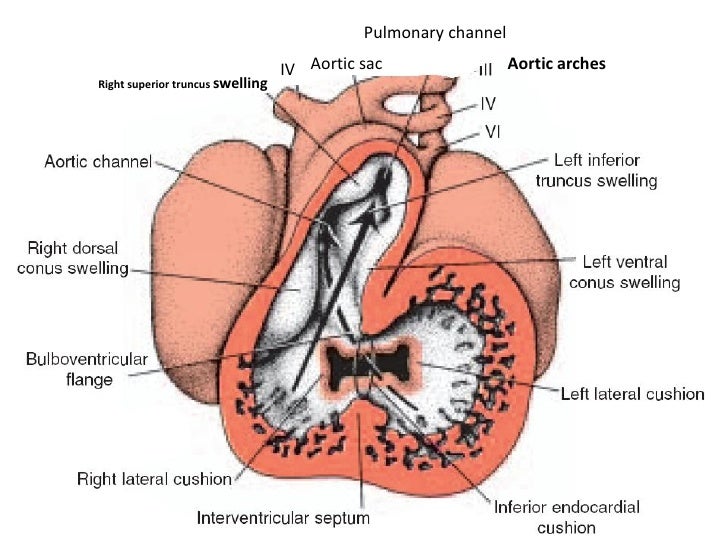

  71. 71. Pulmonary channel IV Aortic sac Aortic arches Right superior truncus swelling

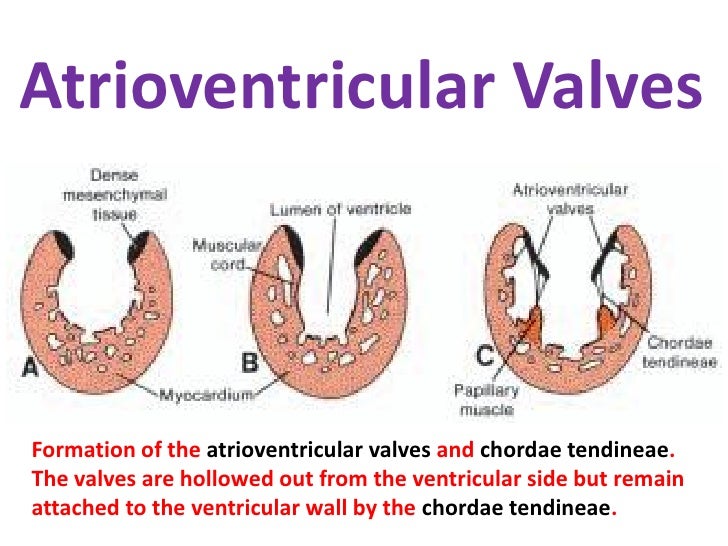

  72. 72. Atrioventricular Valves Formation of the atrioventricular valves and chordae tendineae. The valves are hollowed out from the ventricular side but remain attached to the ventricular wall by the chordae tendineae.

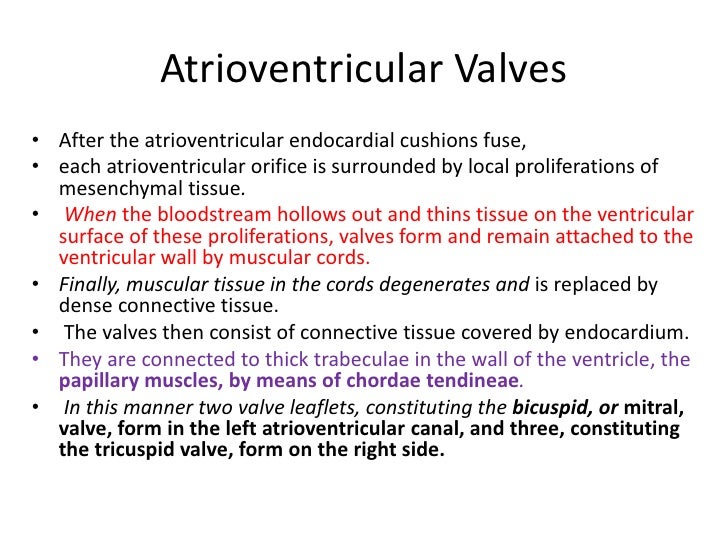

  73. 73. Atrioventricular Valves • After the atrioventricular endocardial cushions fuse, • each atrioventricular orifice is surrounded by local proliferations of mesenchymal tissue. • When the bloodstream hollows out and thins tissue on the ventricular surface of these proliferations, valves form and remain attached to the ventricular wall by muscular cords. • Finally, muscular tissue in the cords degenerates and is replaced by dense connective tissue. • The valves then consist of connective tissue covered by endocardium. • They are connected to thick trabeculae in the wall of the ventricle, the papillary muscles, by means of chordae tendineae. • In this manner two valve leaflets, constituting the bicuspid, or mitral, valve, form in the left atrioventricular canal, and three, constituting the tricuspid valve, form on the right side.

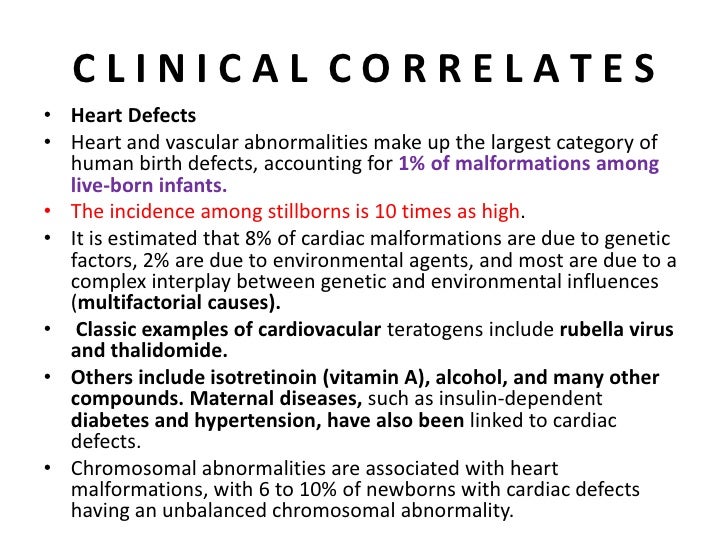

  74. 74. CLINICAL CORRELATES • Heart Defects • Heart and vascular abnormalities make up the largest category of human birth defects, accounting for 1% of malformations among live-born infants. • The incidence among stillborns is 10 times as high. • It is estimated that 8% of cardiac malformations are due to genetic factors, 2% are due to environmental agents, and most are due to a complex interplay between genetic and environmental influences (multifactorial causes). • Classic examples of cardiovacular teratogens include rubella virus and thalidomide. • Others include isotretinoin (vitamin A), alcohol, and many other compounds. Maternal diseases, such as insulin-dependent diabetes and hypertension, have also been linked to cardiac defects. • Chromosomal abnormalities are associated with heart malformations, with 6 to 10% of newborns with cardiac defects having an unbalanced chromosomal abnormality.

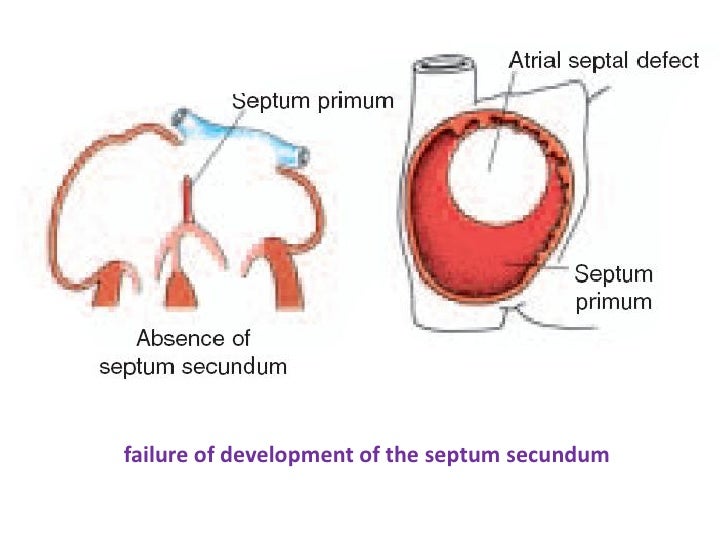

  75. 75. failure of development of the septum secundum

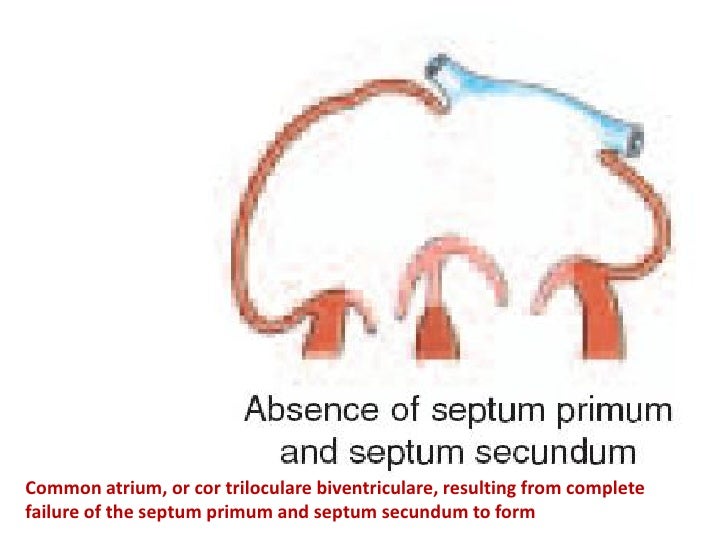

  76. 76. Common atrium, or cor triloculare biventriculare, resulting from complete failure of the septum primum and septum secundum to form

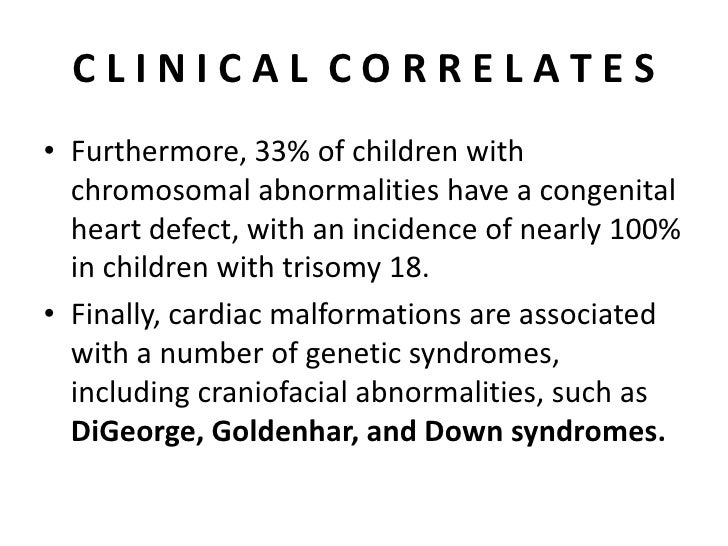

  77. 77. CLINICAL CORRELATES • Furthermore, 33% of children with chromosomal abnormalities have a congenital heart defect, with an incidence of nearly 100% in children with trisomy 18. • Finally, cardiac malformations are associated with a number of genetic syndromes, including craniofacial abnormalities, such as DiGeorge, Goldenhar, and Down syndromes.
  78. 78. CLINICAL CORRELATES • Genes regulating cardiac development are being identified and mapped and mutations that result in heart defects are being discovered. • Heart-hand syndromes (Holt-Oram syndrome). • Atrial septal defect (ASD). • cortriloculare biventriculare. • premature closure of the oval foramen. • persistent atrioventricular canal. • ostium primum defect. • Tricuspid atresia

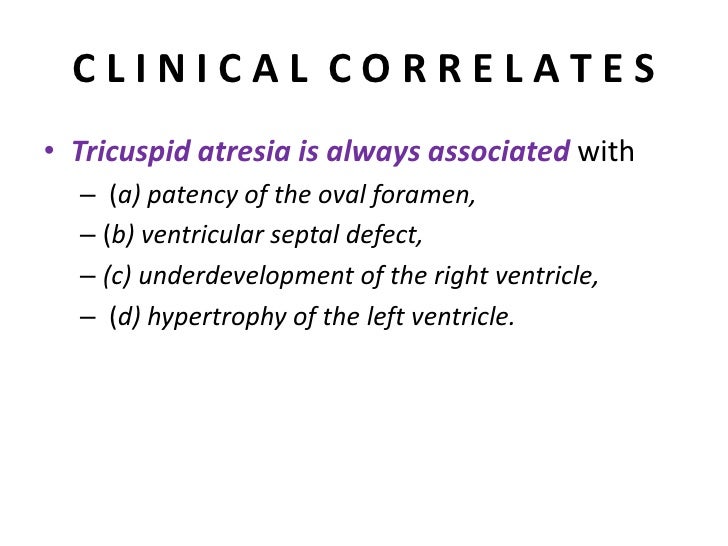

  79. 79. CLINICAL CORRELATES • Tricuspid atresia is always associated with – (a) patency of the oval foramen, – (b) ventricular septal defect, – (c) underdevelopment of the right ventricle, – (d) hypertrophy of the left ventricle.

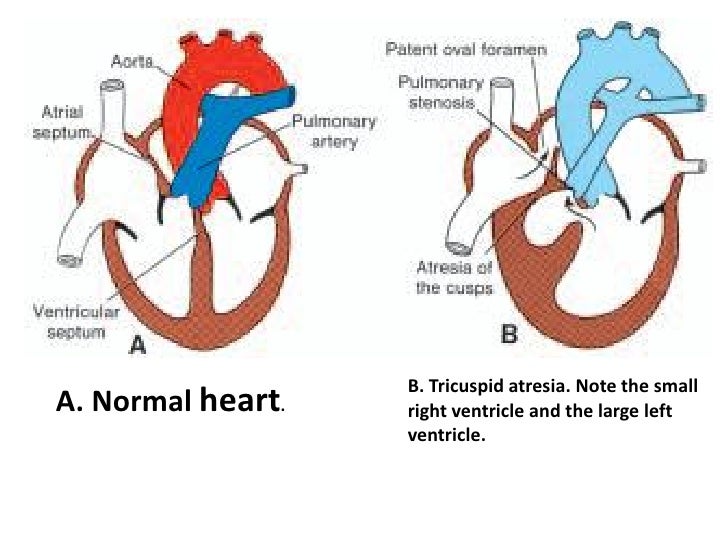

  80. 80. B. Tricuspid atresia. Note the small A. Normal heart. right ventricle and the large left ventricle.

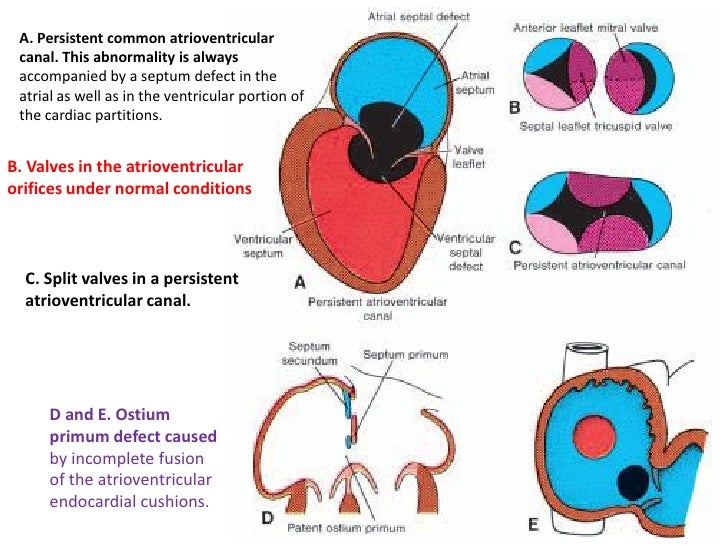

  81. 81. A. Persistent common atrioventricular canal. This abnormality is always accompanied by a septum defect in the atrial as well as in the ventricular portion of the cardiac partitions. B. Valves in the atrioventricular orifices under normal conditions C. Split valves in a persistent atrioventricular canal. D and E. Ostium primum defect caused by incomplete fusion of the atrioventricular endocardial cushions.

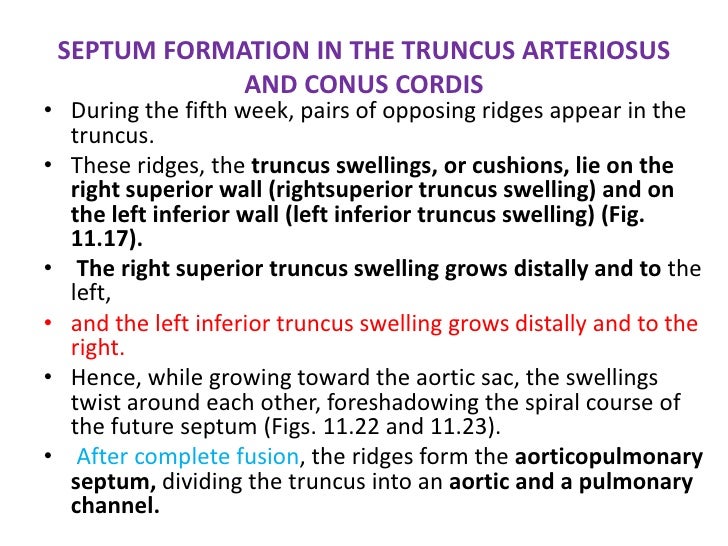

  82. 82. SEPTUM FORMATION IN THE TRUNCUS ARTERIOSUS AND CONUS CORDIS • During the fifth week, pairs of opposing ridges appear in the truncus. • These ridges, the truncus swellings, or cushions, lie on the right superior wall (rightsuperior truncus swelling) and on the left inferior wall (left inferior truncus swelling) (Fig. 11.17). • The right superior truncus swelling grows distally and to the left, • and the left inferior truncus swelling grows distally and to the right. • Hence, while growing toward the aortic sac, the swellings twist around each other, foreshadowing the spiral course of the future septum (Figs. 11.22 and 11.23). • After complete fusion, the ridges form the aorticopulmonary septum, dividing the truncus into an aortic and a pulmonary channel.

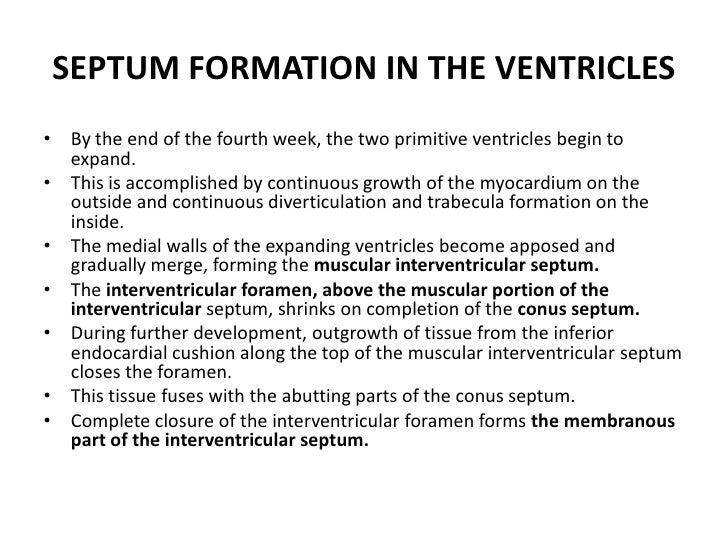

  83. 83. SEPTUM FORMATION IN THE VENTRICLES • By the end of the fourth week, the two primitive ventricles begin to expand. • This is accomplished by continuous growth of the myocardium on the outside and continuous diverticulation and trabecula formation on the inside. • The medial walls of the expanding ventricles become apposed and gradually merge, forming the muscular interventricular septum. • The interventricular foramen, above the muscular portion of the interventricular septum, shrinks on completion of the conus septum. • During further development, outgrowth of tissue from the inferior endocardial cushion along the top of the muscular interventricular septum closes the foramen. • This tissue fuses with the abutting parts of the conus septum. • Complete closure of the interventricular foramen forms the membranous part of the interventricular septum.

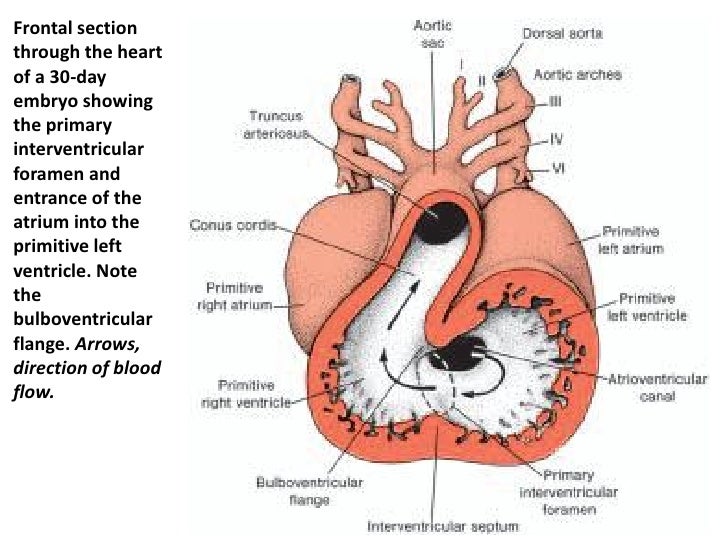

  84. 84. Frontal section through the heart of a 30-day embryo showing the primary interventricular foramen and entrance of the atrium into the primitive left ventricle. Note the bulboventricular flange. Arrows, direction of blood flow.

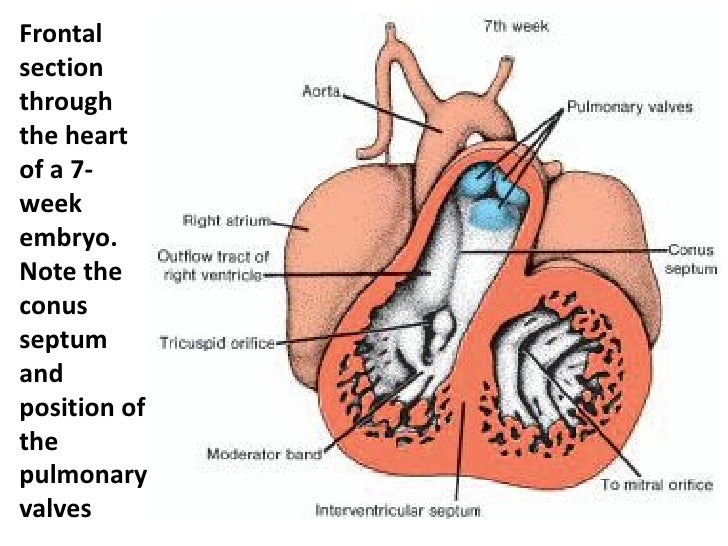

  85. 85. Frontal section through the heart of a 7- week embryo. Note the conus septum and position of the pulmonary valves

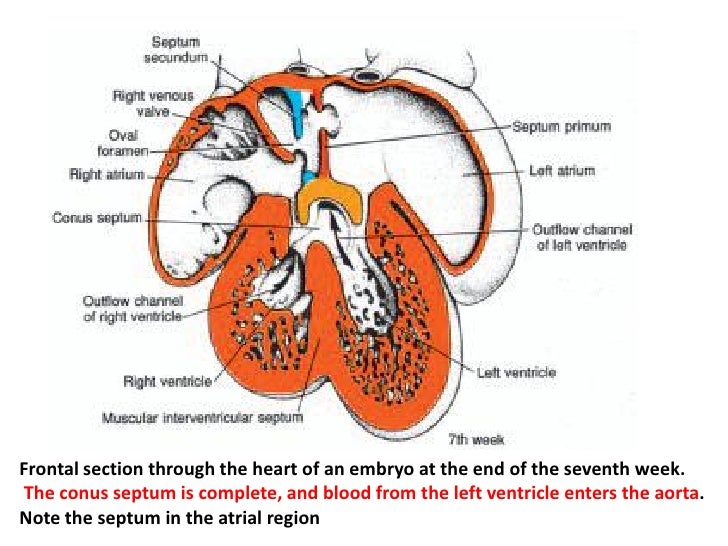

  86. 86. Frontal section through the heart of an embryo at the end of the seventh week. The conus septum is complete, and blood from the left ventricle enters the aorta. Note the septum in the atrial region

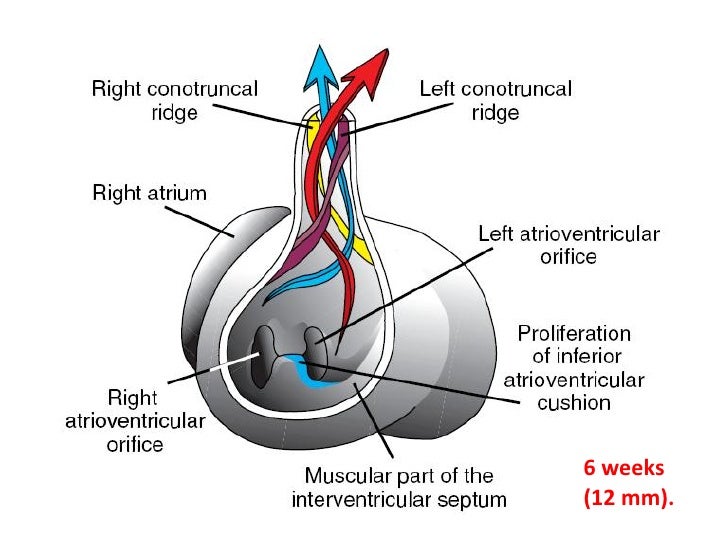

  87. 87. 6 weeks (12 mm).

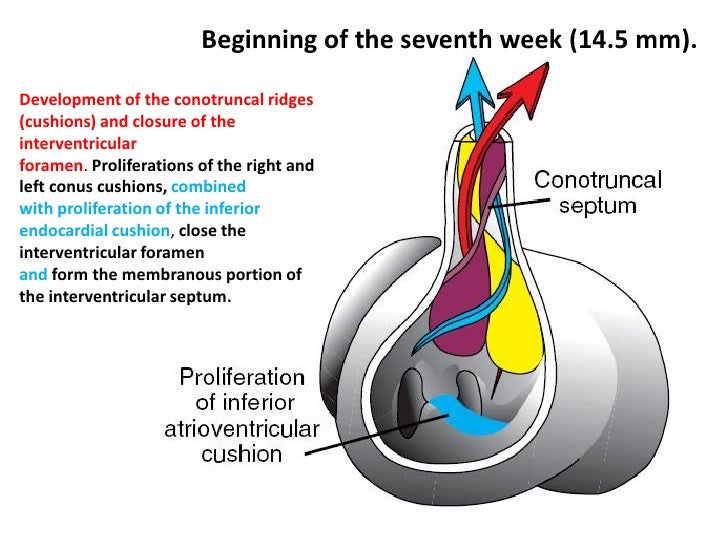

  88. 88. Beginning of the seventh week (14.5 mm). Development of the conotruncal ridges (cushions) and closure of the interventricular foramen. Proliferations of the right and left conus cushions, combined with proliferation of the inferior endocardial cushion, close the interventricular foramen and form the membranous portion of the interventricular septum.

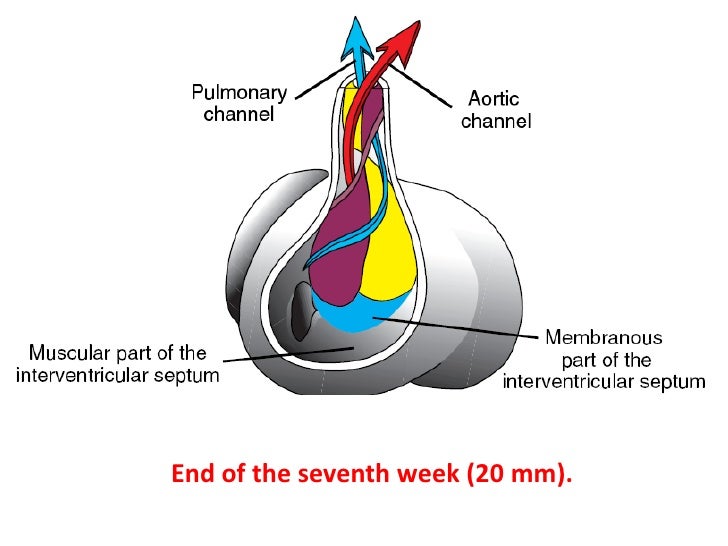

  89. 89. End of the seventh week (20 mm).

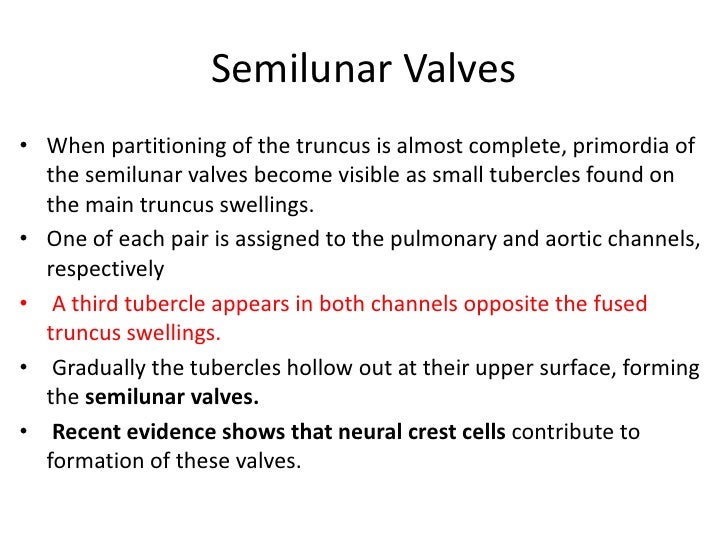

  90. 90. Semilunar Valves • When partitioning of the truncus is almost complete, primordia of the semilunar valves become visible as small tubercles found on the main truncus swellings. • One of each pair is assigned to the pulmonary and aortic channels, respectively • A third tubercle appears in both channels opposite the fused truncus swellings. • Gradually the tubercles hollow out at their upper surface, forming the semilunar valves. • Recent evidence shows that neural crest cells contribute to formation of these valves.

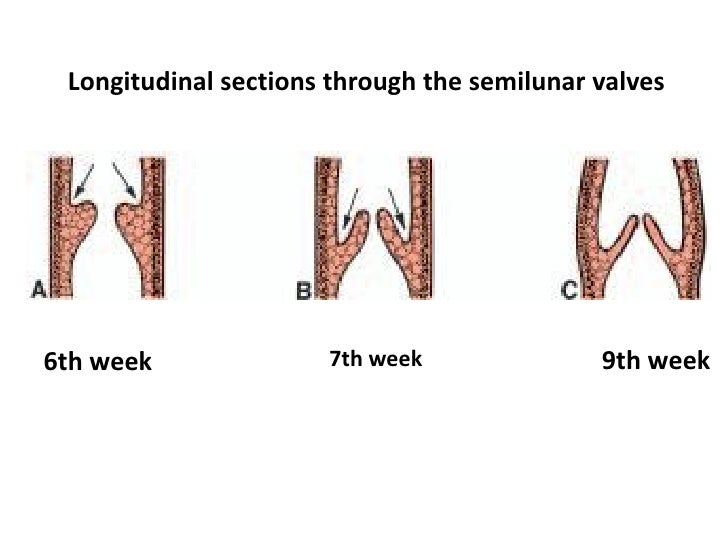

  91. 91. Longitudinal sections through the semilunar valves 6th week 7th week 9th week

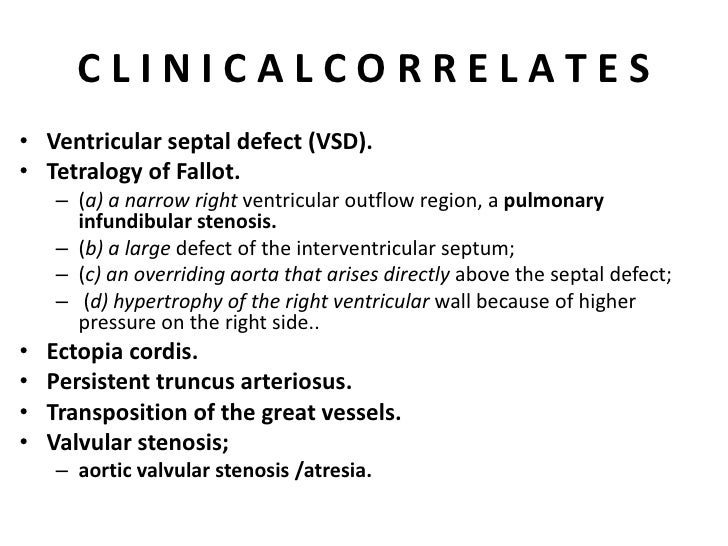

  92. 92. CLINICALCORRELATES • Ventricular septal defect (VSD). • Tetralogy of Fallot. – (a) a narrow right ventricular outflow region, a pulmonary infundibular stenosis. – (b) a large defect of the interventricular septum; – (c) an overriding aorta that arises directly above the septal defect; – (d) hypertrophy of the right ventricular wall because of higher pressure on the right side.. • Ectopia cordis. • Persistent truncus arteriosus. • Transposition of the great vessels. • Valvular stenosis; – aortic valvular stenosis /atresia.

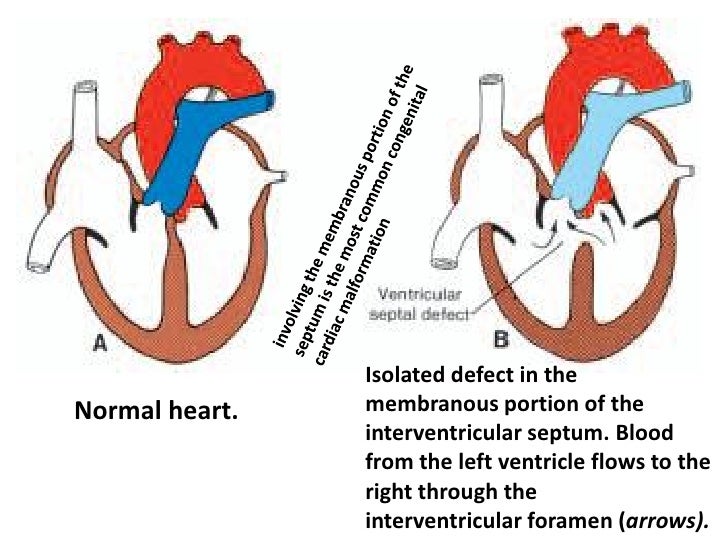

  93. 93. Isolated defect in the Normal heart. membranous portion of the interventricular septum. Blood from the left ventricle flows to the right through the interventricular foramen (arrows).
  94. 94. the most frequently occurring abnormality of the conotruncal region Tetralogy of Fallot. A Tetralogy of Fallot. A. Surface view. B. The four components of the B defect: pulmonary stenosis, overriding aorta, interventricular septal defect, and hypertrophy of the right ventricle.

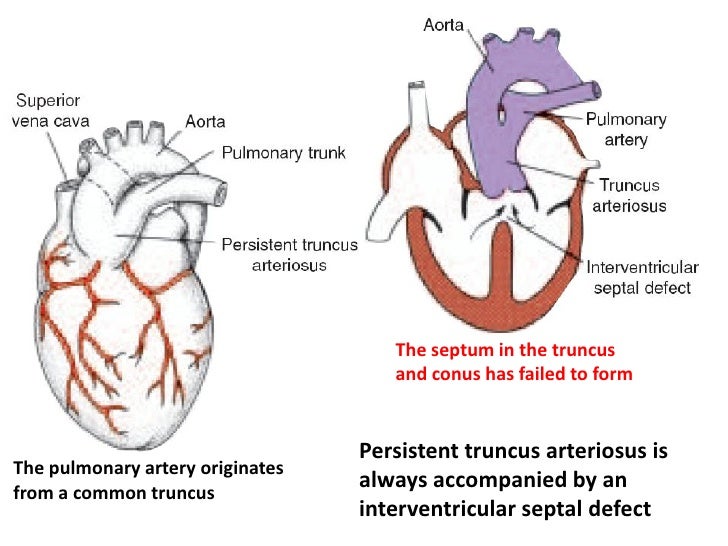

  95. 95. The septum in the truncus and conus has failed to form Persistent truncus arteriosus is The pulmonary artery originates from a common truncus always accompanied by an interventricular septal defect

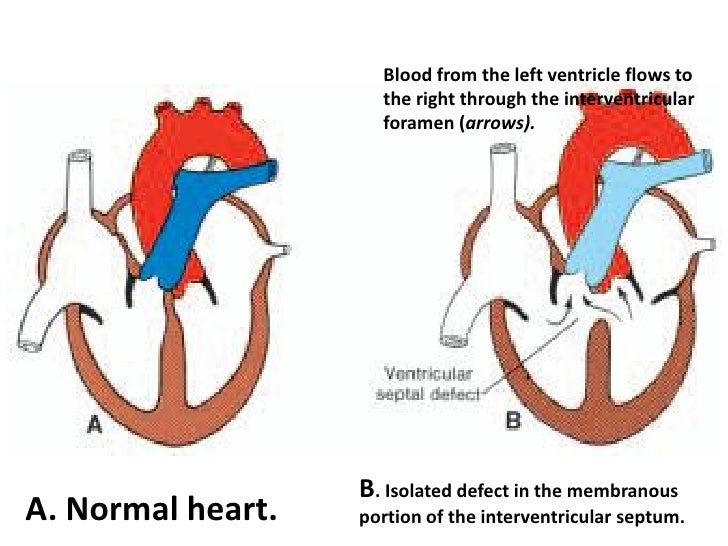

  96. 96. Blood from the left ventricle flows to the right through the interventricular foramen (arrows). B. Isolated defect in the membranous A. Normal heart. portion of the interventricular septum.

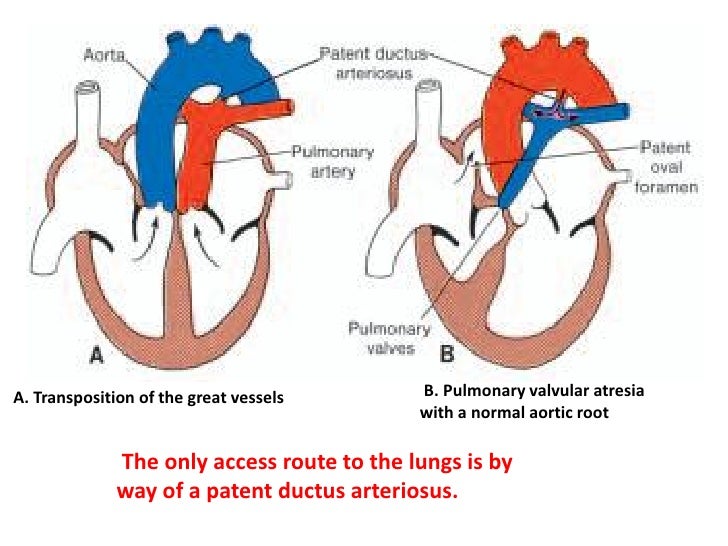

  97. 97. A. Transposition of the great vessels B. Pulmonary valvular atresia with a normal aortic root The only access route to the lungs is by way of a patent ductus arteriosus.

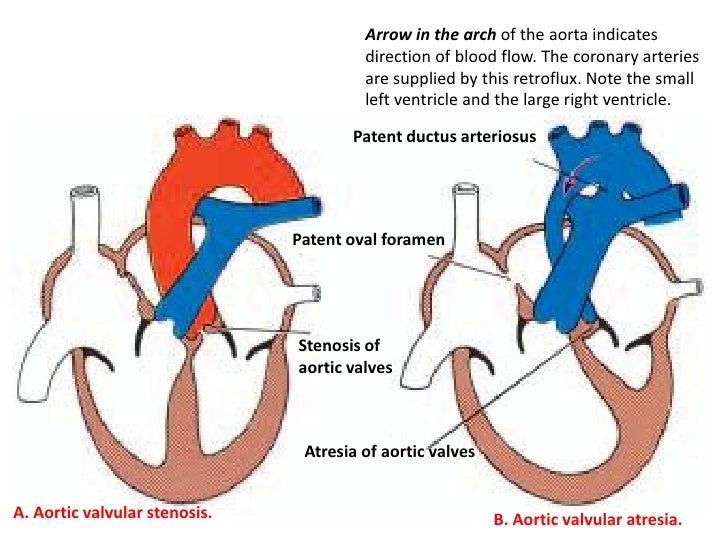

  98. 98. Arrow in the arch of the aorta indicates direction of blood flow. The coronary arteries are supplied by this retroflux. Note the small left ventricle and the large right ventricle. Patent ductus arteriosus Patent oval foramen Stenosis of aortic valves Atresia of aortic valves A. Aortic valvular stenosis. B. Aortic valvular atresia.

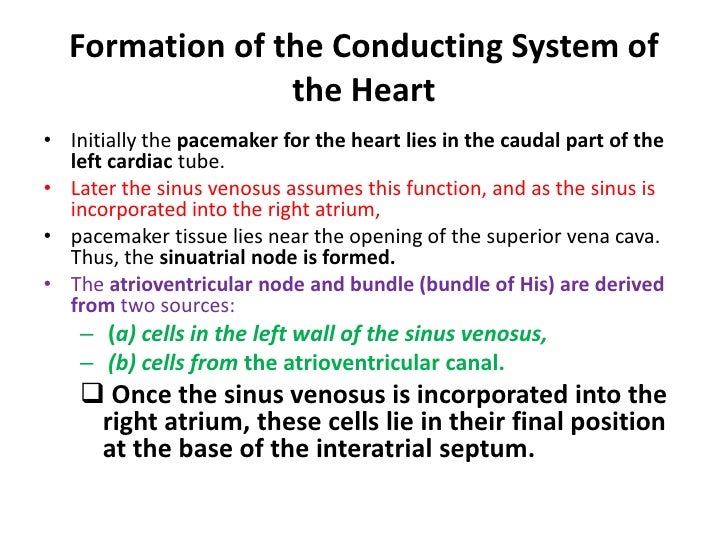

  99. 99. Formation of the Conducting System of the Heart • Initially the pacemaker for the heart lies in the caudal part of the left cardiac tube. • Later the sinus venosus assumes this function, and as the sinus is incorporated into the right atrium, • pacemaker tissue lies near the opening of the superior vena cava. Thus, the sinuatrial node is formed. • The atrioventricular node and bundle (bundle of His) are derived from two sources: – (a) cells in the left wall of the sinus venosus, – (b) cells from the atrioventricular canal.  Once the sinus venosus is incorporated into the right atrium, these cells lie in their final position at the base of the interatrial septum.
  100. 100. Vascular Development • NEXT LECTURE

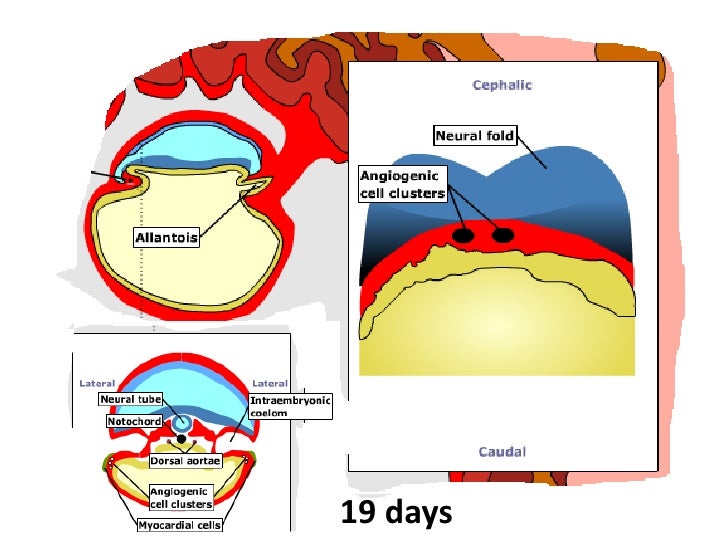

  101. 101. 19 days

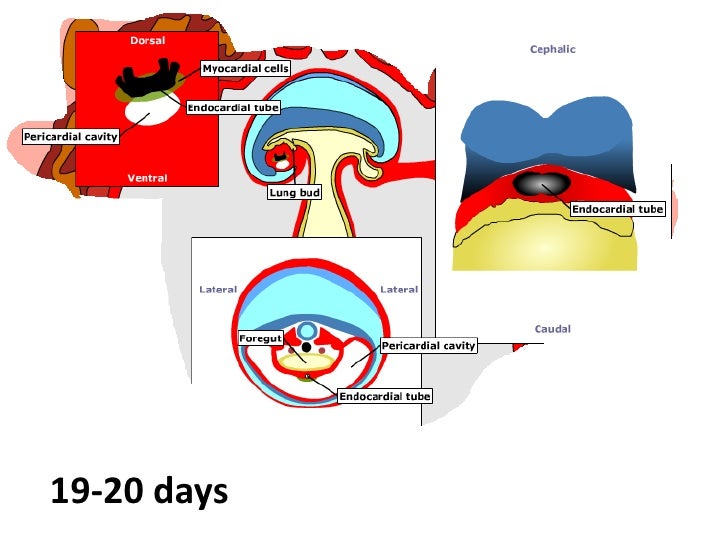

  102. 102. 19-20 days
  103. 103. 20 days

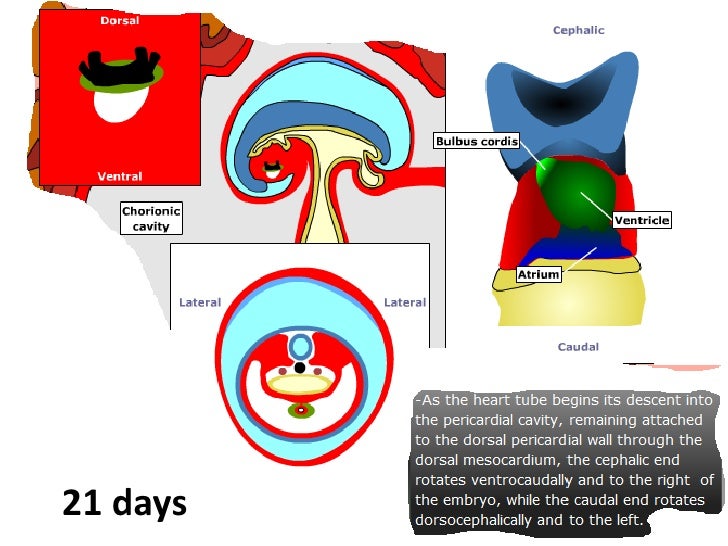

  104. 104. 21 days
  105. 105. 22days

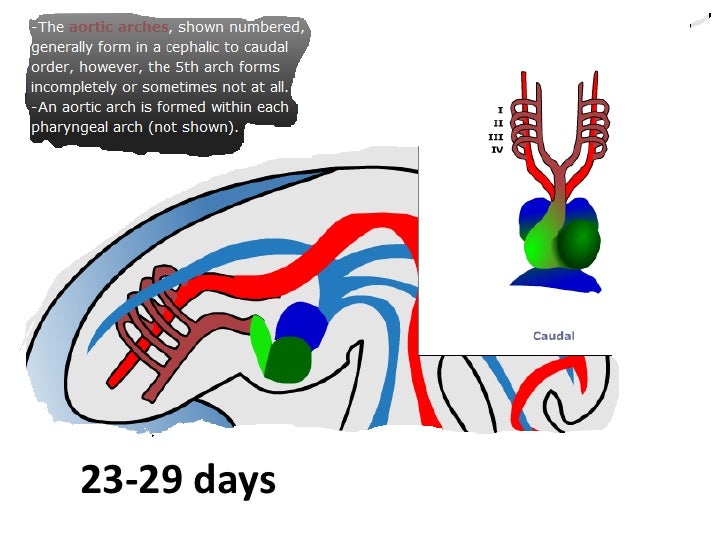

  106. 106. 23-29 days
  107. 107. 23-29 days
  108. 108. 30 days
  109. 109. 5th week
  110. 110. 5th week
  111. 111. 5th - 6th week
  112. 112. 5th - 6th week
  113. 113. 7th week-neonatal
  114. 114. 7th week-neonatal
  115. 115. 7th week-neonatal
  116. 116. 7th week-neonatal
  117. 117. Main intraembryonic and extraembryonic arteries (red) and veins (blue) in a 4-mm embryo (end of the fourth week). Only the vessels on the left side of the embryo are shown
